• Measures high and low side pressures and temperatures Displays vapor and liquid saturation temperatures Calculates system superheat and subcooling On-board data logging; export to your computer with USB or to your phone via YJACK VIEW® App Compatible with measureQuick® App Pressure hold mode displays rate of change for vacuum and positive pressure measurements Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW® High resolution, full color, backlit, 5″ touchscreen display Robust housing with ergonomic grip External vacuum sensor with vacuum target notification Larger temperature clamps (2) for up to 1-5/8″ pipes Bluetooth® 5.2; range up to 1,000 feet Maximum working pressure 740 psia (51.0 bar) Multiple languages: French, Spanish, German and English Rechargeable battery with life indicator US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2) Meets IP52 standards Two-year warranty

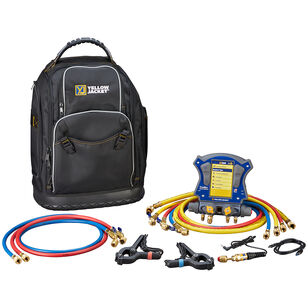

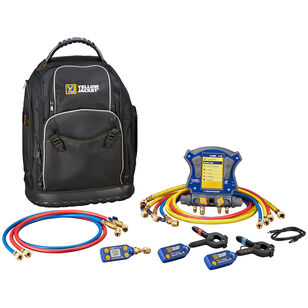

The YELLOW JACKET® TITANMAX® Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multi-function buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth® to the YJACK VIEW® App or measureQuick® App for further analysis.
