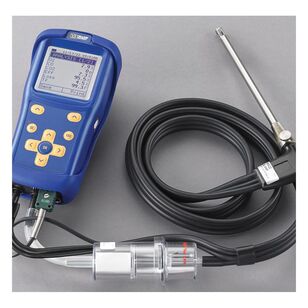

Yellow Jacket® 68601 Combustion Analyzer, Backlit Display
Yellow Jacket® 68601 Combustion Analyzer, Backlit Display
Yellow Jacket® Combustion Analyzer, Backlit Display, 0 to 25% Volume O2, 0 to 4000 ppm CO High Immunity, 0 to 99.9% Volume CO2, -4 to 248 deg F Air Temperature, -4 to 1472 deg F Flue Gas Temperature, 31 to 1472 deg F Temperature Differential, 0 to 9.5 Air Index, 0 to 850 % Excess Air, 0 to 100% Stack Losses, 0 to 120% Efficiency Measuring, +/-0.2% O2, 0 to 400 ppm CO High Immunity, +/-33.8 deg F Air Temperature, 32 to 212 deg F Flue Gas Temperature, -40.1 to -0.81 inH20 Accuracy, 0.1% Volume O2, 1 ppm CO High Immunity, 0.1% Volume CO2, 32.18 deg F Air Temperature, -20 to 800 deg C Flue Gas Temperature, -40.1 to 80.4 inH20 Pressure, 0.1 deg C Temperature Differential, 0.1 Air Index, 1% Excess Air, 0.1% Stack Losses, 0.1% Efficiency Resolution
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,347.61 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandYellow Jacket®
Accuracy+/-0.2% O2, 0 to 400 ppm CO High Immunity, +/-33.8 deg F Air Temperature, 32 to 212 deg F Flue Gas Temperature, -40.1 to -0.81 inH20
Display TypeBacklit
Measuring Range0 to 25% Volume O2, 0 to 4000 ppm CO High Immunity, 0 to 99.9% Volume CO2, -4 to 248 deg F Air Temperature, -4 to 1472 deg F Flue Gas Temperature, 31 to 1472 deg F Temperature Differential, 0 to 9.5 Air Index, 0 to 850 % Excess Air, 0 to 100% Stack Losses
Resolution0.1% Volume O2, 1 ppm CO High Immunity, 0.1% Volume CO2, 32.18 deg F Air Temperature, -20 to 800 deg C Flue Gas Temperature, -40.1 to 80.4 inH20 Pressure, 0.1 deg C Temperature Differential, 0.1 Air Index, 1% Excess Air, 0.1% Stack Losses, 0.1% Efficiency
Features & Benefits
- 2 Gas Sensors for O2 and CO Draft, Pressure and Temperature Measurements High CO Protection, Field-Replaceable Sensors CO2, Combustion Efficiency, Excess Air Ambient CO Monitoring YELLOW JACKET® YJ Combustion App Automatic Generation of QR Code to Download Analyses to Share with Customers or for Records CO Air Free Built-in Dual Pressure Manometer Ideal for High-Efficiency Condensing Systems, Internal Data Storage 15 Programmed Fuels (including #2 Oil, #4 Oil, #6 Oil, Natural Gas, Propane, Wood, Biofuel and more) Backlit Display for Easy Viewing Protective Magnetic Rubber Holster for Hand Free Operation Long Lasting Rechargeable Battery holds charge for 8 hours Optional Wireless Bluetooth® Printer (included in CA502P P/N 68602) High Altitude Adjustment 12-Month Warranty
Marketing Information
The YELLOW JACKET® Combustion Analyzer (CA502) is an essential tool for ensuring the safety, efficiency, and proper operation of heating appliances. With six simultaneous readings displayed, CA502 is among the best in the industry. Compact and lightweight, the analyzer with a magnetic protective holster fits in the palm of your hand. The CO over-limit protection provides sensor longevity and the 7" duct probe with adjustable depth stop allows for easy installation and use at any jobsite. A wireless printer option and YJ Combustion App make the YELLOW JACKET® Combustion Analyzer the simplest combustion analyzer on the market. The inline condensate trap and soot filter provides easy viewing and easy change out and cleanup at the end of a job. A replaceable filter is integrated into the suction line and can be easily replaced while emptying the water trap. The onboard pre-calibrated O2 sensors are easily field-replaceable, allowing for reduced downtime.
Yellow Jacket® 68601 Combustion Analyzer, Backlit Display
BrandYellow Jacket®
MFG #68601
Keller #1405805
