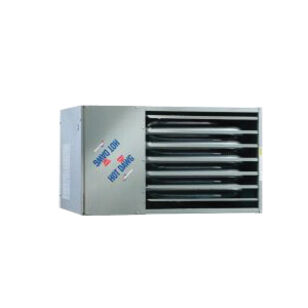

MODINE Hot Dawg™ HDS Series 53191 Separated Combustion Gas Fired Unit Heater, 115 V, 70000 Btu/hr, 1 ph
MFG #53191
Item #1407367
Mfr. Part #53191
UPC #
MODINE Hot Dawg™ Separated Combustion Gas Fired Unit Heater, HDS Series, 70000 Btu/hr, 115 V, 1160 cfm, 1 ph, 60 Hz, NPT Connection, 1/2 in Connection, Natural Gas Fuel, 3 in, 4 in Vent, Direct Spark Ignition, Direct Drive, 1, 2 Stages, 14 ft Mounting Height, 38 ft Heat Throw, 18 in H x 26.8 in L x 25 in D
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$2,150.00 / ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Marketing Information
Attributes
BrandMODINE
BTU Rating70000
CFM Rating1160
Connection Size1/2
Connection TypeNPT
Dimensions18 " H x 26.8 " L x 25 " D
Drive TypeDirect
Frequency Rating60
Fuel TypeNatural Gas
Heat Throw38
Ignition TypeDirect Spark
IndustryHVAC
Mounting Height14
Number of Stages1, 2
Phase1
SeriesHDS Series
Vent Size3 ", 4 "
Voltage Rating115
Additional Information
UL Listed|CSA Certified
Features & Benefits
Low profile, lightweight design easily installs 1 in from the ceiling with only two angle brackets
Operates on natural or propane gas
Finger-proof fan guards on all units
Reduce the need for maintenance with the permanently lubricated motor
100% shut-off with continuous retry to allow for safe ignition in the event the unit doesn't light on the first try
Right or left-hand controls are available on 30 to 75 units by rotating the unit 180 deg
Power vented model simplifies side-wall or roof venting with a small-diameter vent pipe
The ideal heating solution for residential garages and workshops, along with light commercial or industrial applications. With versatile installation options, the Hot Dawg® garage heater frees up more workspace by getting rid of space heaters that clutter up the area. The quiet operation allows your space to be warm without the distraction of a loud machine running in the background.
