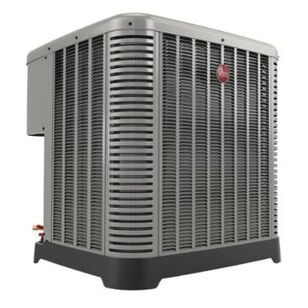

Rheem® Endeavor™ RA15AY18AJ1NA Air Conditioner, 1.5 ton, 17100 Btu/hr Cooling, 208-230 V, 18000 Btu/hr
Rheem® Endeavor™ RA15AY18AJ1NA Air Conditioner, 1.5 ton, 17100 Btu/hr Cooling, 208-230 V, 18000 Btu/hr
Rheem® Air Conditioner, Classic® Series, 1.5 ton Nominal Capacity, 17100 Btu/hr Cooling Capacity, 18000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 12 A Amperage Rating, 152 W Wattage, 1/7 hp Rating, 1075 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 2156 cfm Rating, 11.7 EER Rating, 14.3 SEER Rating, 1 Number of Stages, R-454B Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 71 dB Sound Level, 2-Row Coil Rating, 15 A Fuse Rating, 10.3 sq-ft Face Area, 24 FPI Fins per Inch, 25 in H x 29-3/4 in W x 29-3/4 in D Dimensions, 8 RLA/42 LRA Compressor, 0.8 FLA/1.5 LRA Condenser Fan Motor Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,232.20 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional Information8 RLA/42 LRA Compressor, 0.8 FLA/1.5 LRA Condenser Fan Motor
Amperage Rating12
BTU Rating18000
CFM Rating2156
Coil Rating2-Row
Compressor TypeScroll
Cooling Capacity17100
Dimensions25 " H x 29-3/4 " W x 29-3/4 " D
EER Rating11.7
Face Area10.3
Fins per Inch24
Frequency Rating60
Fuse Rating15
HP Rating1/7
Liquid Line Size3/8
Nominal Capacity1.5
Number of Stages1
Phase1
Refrigerant TypeR-454B
Rotational Speed1075
SEER Rating14.3
SeriesClassic Series
Sound Level71
Suction Line Size3/4
Voltage Rating208-230
Warranty10 Year Limited Conditional Parts
Wattage152
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability PlusOne® Expanded Valve Space: 3 in. - 4 in. - 5 in. service valve space - provides a minimum working area of 27-square inches for easier access PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels - makes repairs easier and faster Swept Wing Fan Technology: Features quieter operation and improved unit acoustics Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
Documents
Marketing Information
Rheem® Endeavor® Air Conditioner, Classic® Series, 1.5 ton Nominal Capacity, 17100 Btu/hr Cooling Capacity, 18000 Btu/hr, 208-230 V, 12 A, 152 W Wattage, 1/7 hp, 1075 rpm Rotational Speed, 60 Hz, 1 ph Phase, Scroll Compressor, 2156 cfm, 11.7 EER Rating, 14.3 SEER, 1 Stages, R-454B Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 71 dB Sound Level, 2-Row Coil, 15 A Fuse Rating, 10.3 sq-ft Face Area, 24 FPI Fins per Inch, 25 in H x 29-3/4 in W x 29-3/4 in D, Additional Information: 8 RLA/42 LRA Compressor, 0.8 FLA/1.5 LRA Condenser Fan Motor
Rheem® Endeavor™ RA15AY18AJ1NA Air Conditioner, 1.5 ton, 17100 Btu/hr Cooling, 208-230 V, 18000 Btu/hr
BrandRheem®
MFG #RA15AY18AJ1NA
