M-VCO F203SSN2-6IN SS BL VALVE
M-VCO F203SSN2-6IN SS BL VALVE

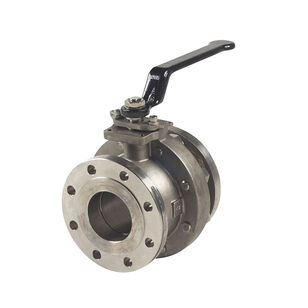

Milwaukee Valve Ball Valve, 2-Piece, Series: F20, 6 in Nominal, Flanged, 720 psi, 300 lb, Full Port, Media: Gas, Lever Operated Actuator, 316 Stainless Steel Ball, 15.8 in Inlet to Outlet Length, 10.56 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem Trim, Graphite, Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$34,358.11Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMilwaukee Valve
Actuator TypeLever Operated
Ball Material316 Stainless Steel
Body MaterialStainless Steel
Domestic/ImportImport
End StyleFlanged
IndustryPlumbing
Inlet to Outlet Length15.8"
MediaGas
Nominal Size6"
Port TypeFull
Pressure Class300 lbs.
Pressure Rating720
SeriesF20
Softgoods MaterialGraphite
Top to Inlet Center10.56"
Trim Material316 Stainless Steel Stem
Type2-Piece
Additional Information
ATSM A351 CF8M Body|ASTM A351 CF8M Ball|ASTM A479 Stem|API 608/598/607 Firesafe 6th edition|MSS SP 72|NACE MRO175
Features & Benefits
- N: NXT standard seat Live loaded packing for extended service Vented ball in ball slot for cavity venting Standard grounded ball and stem ISO 5211 mounting pad for easy actuation Spiral wound graphite and stainless body seal NACE compliant fastener for sour gas service Blow-out proof stem design Pressure relieving seat design Valve is rated 150 psi steam at 365 deg F Locking lever for safety lockout Graphite packing
M-VCO F203SSN2-6IN SS BL VALVE
BrandMilwaukee Valve
MFG #F203SSN2 600
Keller #1409855
