Surge Protective Device, 4-Mode, 120-240 VAC 1 Ph, Type 2, EMI/RFI Filter, Surge Current Rating 50kA
Surge Protective Device, 4-Mode, 120-240 VAC 1 Ph, Type 2, EMI/RFI Filter, Surge Current Rating 50kA

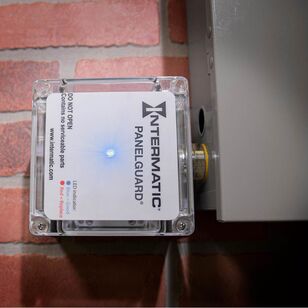

Intermatic PANELGUARD Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Depth3.54
Height6.46
IndustryLeisure
ItemACSinewaveTrackingEMIRFILevel_enSinewave tracking (EMI/RFI) level is up to 54 dB from 2 kHz to 100 MHz
ItemColor_enGray
ItemConduitSize_en0.75 "
ItemDiagnosticsIndicators_enBlue LED Protection Status Indicator, Red LED Service Indicator
ItemEnclosureType_enNEMA Type 4X
ItemFilter_enEMI/RFI Filter
ItemHasLEDRemoteContactAudibleAlarm_enNo
ItemLEDSurgeProtectionIndicator_enYes
ItemMarket_enCommercial, Industrial
ItemMaximumContinuousOperatingVoltageLG_en150
ItemMaximumContinuousOperatingVoltageLL_en300
ItemMaximumContinuousOperatingVoltageLN_en150
ItemMaximumContinuousOperatingVoltageNG_en150
ItemMaximumSurgeCurrentRatingPerMode_en50 kA
ItemMaximumSurgeCurrentRatingPerPhase_en50 kA
ItemModesOfProtection_en4
ItemNominalDischargeCurrent_en20 kA
ItemOperatingTemperatureMaxC80
ItemOperatingTemperatureMaxF176
ItemOperatingTemperatureMinC-40
ItemOperatingTemperatureMinF-40
ItemProductDepthIn3.54
ItemProductDepthMm89.92
ItemProductHeightIn6.46
ItemProductHeightMm164.084
ItemProductWidthIn4.81
ItemProductWidthMm122.17
ItemShortCircuitCurrentRating_en200 kA
ItemSurgeProtectionTechnology_enIndividually integrated thermal disconnect technology TPMOV
ItemSurgeProtectionTypes_en2
ItemVoltage_en120/240 VAC Single-Phase
ItemVoltageProtectionRatingLG_en1200
ItemVoltageProtectionRatingLL_en1200
ItemVoltageProtectionRatingLN_en700
ItemVoltageProtectionRatingNG_en600
ItemWireLeadLengthIn18 "
ItemWireLeadLengthMm457.2
ItemWireSizeMax_enNo. 10 AWG
ModelItt-l5f21s1dg1
Voltage120,240
Weight0.5
Width4.81"
Shipping Dimensions (L x W x H)8.63" x 5.38" x 5.38"
Additional Information
2020 National Electric Code, Article 242 (previously NEC, Art. 285), 700.10 & 708.20|ANSI/IEEE C62.72-2016, ANSI/IEEE C62.41.1, C62.41.2-2002|C62.45-2002, ANSI/IEEE C62.62-2010 environments: Categories: A, B & C|ANSI/UL 1283|ANSI/UL 1449 4th Edition|CSA C22.2 No. 269.2-13, and No. 8-13 (VZCA, VZCA7, FOKY, KOKY7)|RoHSCertification
Features & Benefits
- Type 2 surge protection Optional audible alarm and dry relay contacts 4 Modes of protection
Documents
Marketing Information
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
