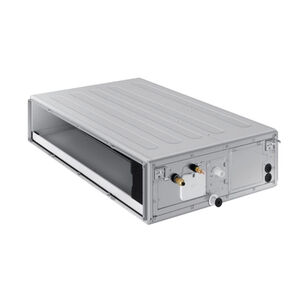

Samsung AC024DNHDCG/AA Ducted Single Zone Mini-Split Indoor Unit, 208-230 V, 14.2 A Cooling, 23.5 A Heating, 1 ph, Steel
Samsung AC024DNHDCG/AA Ducted Single Zone Mini-Split Indoor Unit, 208-230 V, 14.2 A Cooling, 23.5 A Heating, 1 ph, Steel
Samsung Ducted Single Zone Mini-Split Indoor Unit, 208-230 V, 14.2 A Cooling, 23.5 A Heating, 6.7 kW, 60 Hz, 1 ph, 23000 Btu/hr Cooling, 27000 Btu/hr Heating, 607 to 841 cfm, 12 EER Rating, 18 SEER, 9.5 HSPF, Flared Connection, Twin Rotary Compressor, R-32 Refrigerant, 30 A Fuse Rating, Inverter Drive, Tonnage: 1.91 ton, 41 dBA Sound Level, Steel, Galvanized, 64 to 90 deg F Cooling, <=86 deg F Heating, 47-3/16 in Overall Length, 27-5/8 in Overall Width, 9-13/16 in Overall Height, Brushless DC Motor, 1/4 in Liquid Line, 5/8 in Suction Line
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,113.72Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationBrushless DC Motor, 1/4 " Liquid Line, 5/8 " Suction Line
Amperage Rating14.2 A Cooling, 23.5 A Heating
BTU Rating23000 Btu/hr Cooling, 27000 Btu/hr Heating
CFM Rating607 to 841
Compressor TypeTwin Rotary
Connection TypeFlared
Drive TypeInverter
EER Rating12
FinishGalvanized
Frequency Rating60
Fuse Rating30
HSPF Rating9.5
MaterialSteel
Overall Height9-13/16
Overall Length47-3/16
Overall Width27-5/8
Phase1
Power Rating6.7
Refrigerant TypeR-32
SEER Rating18
Sound Level41
Temperature Rating64 to 90 deg F Cooling, <=86 deg F Heating
Tonnage1.91
Voltage Rating208-230
Additional Information
AHRI 210-240 2023|ENERGY STAR Certified|ETL Intertek Listed|UL 60335-2-40
Features & Benefits
- The system shall provide high heating capacity at -4 deg F (-20 deg C) with heating operation down to -13 deg F (-25 deg C) The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch that disables indoor in the event of condensate overflow The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app Auto-restart after power loss Soft-start compressor minimizing current inrush Indoor unit: Insulated, galvanized steel All heat exchangers shall be mechanically bonded aluminum fin to copper tube The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by electronic an expansion valve at the outdoor unit The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the optional refrigerant leak detector is installed and configured (leak detector and MIM-B14U accessories are required) Smart pressure control feature that adjusts fan speed based on ESP delivering consistent heating and cooling power The indoor unit shall have a smart-tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve to increase or decrease airflow The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant Control wiring shall be 2 X 16 AWG wire No additional interface modules/adapters are required when connecting to Samsung central control options The unit shall be operated via a wireless or wired remote control with DDC type signal Dual set temperature support when connected to supported controllers Wired or wireless controllers must be purchased separately External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required)
