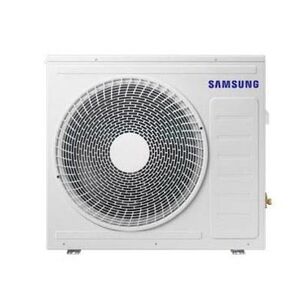

Samsung Duct S Series AC024DXADCG/AA Heat Pump Outdoor Unit, 208 to 230 V, 13.2 A Cooling, 19.8 A Heating, 1 ph Phase
Samsung Duct S Series AC024DXADCG/AA Heat Pump Outdoor Unit, 208 to 230 V, 13.2 A Cooling, 19.8 A Heating, 1 ph Phase
Samsung Heat Pump Outdoor Unit, Duct S Series, 208 to 230 V, 13.2 A Cooling, 19.8 A Heating, 153 W, 60 Hz, 1 ph, 3 Fan Speeds, 27000 Btu/hr Heating, 24000 Btu/hr Cooling, 607 to 841 cfm Heating CFM Rating, 607 to 841 cfm Cooling CFM Rating, 11 EER Rating, 17.5 SEER, 8.7 HSPF, Connection Type: Flared, 1/4 in Liquid Line, 5/8 in Suction Line, 25 A Fuse Rating, Inverter Drive, 52 dBA Heating Sound Level, 50 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, -4 to 75 deg F Heating Operating Temperature, 23 to 122 deg F Cooling Operating Temperature, 12-3/16 in Overall Length, 34-5/8 in Overall Width, 31-3/8 in Overall Height, Additional Information: R-32 Refrigerant Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,262.84Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationR-32 Refrigerant Type
Amperage Rating13.2 A Cooling, 19.8 A Heating
Connection TypeFlared
Cooling BTU Rating24000
Cooling CFM Rating607 to 841
Cooling Operating Temperature23 to 122
Cooling Sound Level50
Correct Item GroupSingle Zone Outdoor Units
Drive TypeInverter
EER Rating11
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating25
Heating BTU Rating27000
Heating CFM Rating607 to 841
Heating Operating Temperature-4 to 75
Heating Sound Level52
HSPF Rating8.7
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Number of Fan Speeds3
Overall Height31-3/8
Overall Length12-3/16
Overall Width34-5/8
Phase1
Power Rating153
SEER Rating17.5
SeriesDuct S Series
Suction Line Size5/8
Voltage Rating208 to 230
Additional Information
AHRI Certified|ENERGY STAR Certified|ETL Listed
Features & Benefits
- The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app Auto-restart after power loss Soft-start compressor minimizing current inrush The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable Interconnecting control wiring between the outdoor to indoor shall be 2-conductor/stranded copper/shielded cable between 18-16 AWG Outdoor unit: Galvanized steel with a baked-on powder-coated finish for durability All heat exchangers shall be mechanically bonded aluminum fin to copper tube The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the optional refrigerant leak detector is installed and configured (leak detector and MIM-B14U accessories are required) Smart pressure control feature that adjusts fan speed based on ESP delivering consistent heating and cooling power No additional interface modules/adapters are required when connecting to Samsung central control options The unit shall be operated via a wireless or wired remote control with DDC type signal Dual set temperature support when connected to supported controllers Wired or wireless controllers must be purchased separately External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required) External heat control configuration settings includes outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIMB14U accessory required) Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required)
Documents
Samsung Duct S Series AC024DXADCG/AA Heat Pump Outdoor Unit, 208 to 230 V, 13.2 A Cooling, 19.8 A Heating, 1 ph Phase
BrandSamsung
MFG #AC024DXADCG/AA
Keller #1413079
My Part ##
Last Ordered#
$5,262.84Â /Â ea
