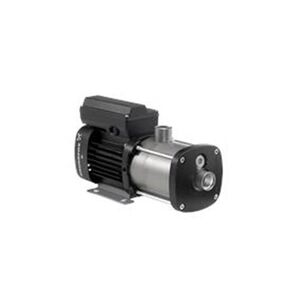

Grundfos CM Series 99087480 Multi-Stage End Suction Centrifugal Pump, 1.48 hp, 3 ph, 1-1/2 in Inlet Connection
Grundfos CM Series 99087480 Multi-Stage End Suction Centrifugal Pump, 1.48 hp, 3 ph, 1-1/2 in Inlet Connection
Grundfos Multi-Stage End Suction Centrifugal Pump, Series: CM Series, Model: CM 10-1, 208 to 230YY/440 to 480Y V, Amperage Rating: 5.2 to 5.1/2.55 to 2.65 A, 60 Hz Frequency, HP Rating: 1.48 hp, Phase: 3 ph, 1-1/2 in Inlet Connection, Outlet Connection Size: 1-1/2 in, 52.8 gpm Flow Rate, Maximum Pressure: 145.04 psi, 3480 rpm Speed, Motor Speed Rating: 3430 to 3470 rpm, Service Factor: 1, -4 to 194 deg F, Ball Bearing, Frame: 80CB, Cast Iron/EPDM/Silicon Carbide/Stainless Steel Housing, 15.3 in Overall Length, 6.22 in Overall Width, 8.52 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Amperage Rating5.2 to 5.1/2.55 to 2.65
Bearing TypeBall
Flow Rate52.8
Frame80CB
Frequency Rating60
Housing MaterialCast Iron/EPDM/Silicon Carbide/Stainless Steel
HP Rating1.48
Inlet Connection Size1-1/2
Maximum Pressure145.04
ModelCM 10-1
Motor Speed Rating3430 to 3470
Outlet Connection Size1-1/2
Overall Height8.52"
Overall Length15.3
Overall Width6.22
Phase3
SeriesCM Series
Service Factor1
Speed Rating3480
Temperature Rating-4 to 194
Voltage Rating208 to 230YY/440 to 480Y
Additional Information
AISI 304 Specified | ACS/EAC/WRAS Approved | ASTM A48-25A Specified | CE Marked | cULus Listed | EN 1.4301/GJL-200 Specified | NSF 61 Certified | UL Recognized
Features & Benefits
- Nordlock© washer ensures secure clamping of pump impellers and provides quick and easy assembly and disassembly Grundfos designed mechanical O-ring shaft seal offers superior dry running capabilities and reduced sticking problems Encapsulated sleeve O-ring design retains O-ring when temperature change causes expansion and contraction Labyrinth seal provides protection for motor bearings and reduces maintenance Filling plug is sealed by O-ring for easy maintenance Rotation indicator allows you to quickly check if 3 ph electrical connection is correct; indicator shows black if correct, white if incorrect
Documents
Marketing Information
Compact, reliable, horizontal, multi-stage, end suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 3 ph, foot-mounted, fan cooled asynchronous motor.
