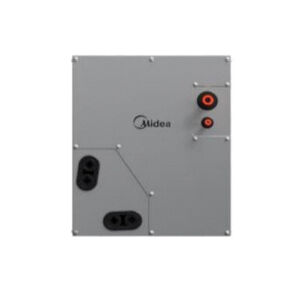

Midea® EVOX Series MAAHE-H60B-DA Indoor Cased Coil, 60000 Btu/hr, 24" D-Cabinet
Midea® EVOX Series MAAHE-H60B-DA Indoor Cased Coil, 60000 Btu/hr, 24" D-Cabinet
Midea® EVOX Series MAAHE-H60B-DA Indoor Cased Coil, 60000 Btu/hr, 24" D-Cabinet. Technical Specs: R-454B Refrigerant, 27-3/4 in H x 24-1/2 in W x 21-1/2 in D Dimensions.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,280.57 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMidea®
Additional Information11.7 EER2, 18.3 SEER2, 10 HSPF2-4
Amperage Rating5.5/4
BTU Rating24000
CFM Rating824/759/695/630/630
ConfigurationLeft, Right, Up, Down
Connection TypeFlared
Dimensions45 " H x 21 " W x 17-1/2 " D
Frequency Rating60
Fuse Rating15
Heating Capacity24000
Liquid Line Size3/8
MaterialAluminum
ModelMAUHE
Motor TypeECM
Nominal Capacity2
Number of Stages2
Phase1
Refrigerant TypeR-454B
SeriesAHU Series
Sound Level44/44/42/28/28
Suction Line Size3/4
Temperature Rating-22 to 122 deg F Cooling, -22 to 75 deg F Heating
Voltage Rating115/208/230
Additional Information
AHRI Certified|cETLus Intertek Listed|ENERGY STAR Certified|NEEP Listed
Features & Benefits
- Compatible with 485 or 24V: automatically identifying the control mode, no need for manual conversion. Constant CFM ECM motor provides consistent airflow up to 0.8 in. w.c. Electronic expansion valve (EEV) control: better throttling for highly efficient operation. Optional auxiliary heat kits available up to 25kW. All-Aluminum Coil. Quiet Operation - down to 35 dB(A) level. Streamlined Trouble-shooting - Easily accessible error code display Easy Access - Remove two screws for access to the electrical board, blower, heater Slide-Out Fan - Easily remove the fan motor for straightforward maintenance Magnetic Filter Cover - One click for filter access
