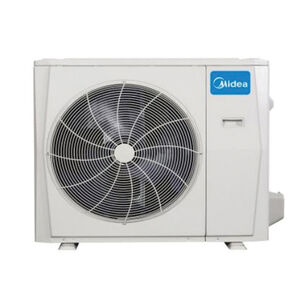

Midea® Infini Series MO1BS-H36B-2A Outdoor Heat Pump, 36000 Btu/hr, 208/230V
Midea® Infini Series MO1BS-H36B-2A Outdoor Heat Pump, 36000 Btu/hr, 208/230V
Midea® Infini Series MO1BS-H36B-2A Outdoor Heat Pump, 36000 Btu/hr, 208/230V. Technical Specs: R-454B Refrigerant, 3002 cfm Cooling CFM Rating, 62.5 dBA Cooling Sound Level, Twin Rotary Compressor, Inverter Drive, Connection Type: Flared, 3/8 in Liquid Line, 3/4 in Suction Line, -22 to 75 deg F Heating Operating Temperature, -22 to 122 deg F Cooling Operating Temperature, 38-9/16 in Overall Length, 16-3/8 in Overall Width, 38-3/8 in Overall Height Dimensions, Efficiency: 11.7 EER2, 10.2 HSPF2-4.
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,715.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMidea®
Additional Information19.5 SEER2, 9.3 EER2, 9.1 HSPF2-4, 2.95 COP, 14 to 4 AWG Communication Wiring, EXV+Throttle Valve Throttle Type
Amperage Rating33
Compressor TypeRotary
Connection TypeFlared
Cooling BTU Rating36000
Cooling CFM Rating2235
Cooling Operating Temperature-13 to 122
Cooling Sound Level63
EER2 Rating9.3
Frequency Rating60
Heating BTU Rating36000
Heating CFM Rating2235
Heating Operating Temperature-13 to 75
Heating Sound Level63
HSPF2-4 Rating9.1
IndustryHVAC
Liquid Line Size3/8
ModelMO1BS
Mounting TypeWall
Overall Height31-7/8
Overall Length16-1/8
Overall Width37-1/4
Phase1
Power Rating3830 W Cooling, 3580 W Heating
Refrigerant TypeR-454B
SeriesINFINI Series
Suction Line Size5/8
Voltage Rating208/230
Additional Information
AHRI/neep Certified|cETLus Intertek Listed
Features & Benefits
- Indoor unit TU1 copper coil Humidity control 1~100% fan speed setting WiFi capability: through WiFi dongle or wired controller with built-in WiFi OTA(by using WiFi dongle) Multiple control options available: Two way communication wired controller:120N(X6) Two way communication wired controller with built-in WiFi:120N(X6W) Infrared wired controller: 120L Wireless remote controller Third-Party 24V Thermostat*
Midea® Infini Series MO1BS-H36B-2A Outdoor Heat Pump, 36000 Btu/hr, 208/230V
BrandMidea®
MFG #MO1BS-H36B-2A
Keller #1413947
