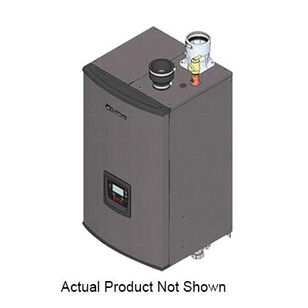

Lochinvar® EPC199N Combination Fire Tube Gas Boiler, 95 % AFUE, 199000 Btu/hr BTU, 120 VAC, 1 ph Phase, Stainless Steel
Lochinvar® EPC199N Combination Fire Tube Gas Boiler, 95 % AFUE, 199000 Btu/hr BTU, 120 VAC, 1 ph Phase, Stainless Steel
Lochinvar® Combination Fire Tube Gas Boiler, 120 VAC, 60 Hz Frequency, 1 ph, 95 % AFUE, 199000 Btu/hr BTU, 8.2 to 10.6 gpm Flow Rate, 50 psi Pressure, 1 in Water, 1/2 in Gas, 3 in Air Inlet Connection, Natural Gas Fuel, Horizontal Direct, Vertical Vent, Low Nox, Modulating Burner, Chimney/Breeching/Vent Size: 3 in, 185 MBtu/hr DOE Heating, Direct Spark Ignition, Net BTU Rating: 161 MBtu/hr, 161 MBtu/hr Net IBR, Wall Mounting, Stainless Steel, 77 deg F, Dimensions: 18-3/4 in L x 18 in W x 32-1/2 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,507.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLochinvar®
AFUE Rating95
BTU Rating199000
Burner TypeLow Nox, Modulating
Chimney/Breeching/Vent Size3
Connection Type1 " Water, 1/2 " Gas, 3 " Air Inlet
Dimensions18-3/4 " L x 18 " W x 32-1/2 " H
DOE Heating Capacity185
Flow Rate8.2 to 10.6
Frequency Rating60
Fuel TypeNatural Gas
Ignition TypeDirect Spark
MaterialStainless Steel
Mounting TypeWall
Net BTU Rating161
Net Ibr Rating161
Phase1
Pressure Rating50
Temperature Rating77
Vent TypeHorizontal Direct, Vertical
Voltage Rating120
Additional Information
AHRI Certified|ASME Specified|CSA Certified|ENERGY STAR® Certified
Features & Benefits
- Smart control digital operating control LCD display with words not codes Outdoor reset control with outdoor air sensor Programmable system efficiency optimizers DHW response time, DHW pre-heat and outdoor air reset curve 2-pump control system pump and boiler pump Low voltage terminal strip air handler interlock, flow switch contacts, Low water cutoff connection, system sensor contacts outdoor air sensor contacts and cascade contacts Time clock for data logging last 10 lockouts Low water flow safety control and indication Password security Built-in cascading sequencer for up to 8 units
Lochinvar® EPC199N Combination Fire Tube Gas Boiler, 95 % AFUE, 199000 Btu/hr BTU, 120 VAC, 1 ph Phase, Stainless Steel
BrandLochinvar®
MFG #EPC199N
Keller #1414213
My Part ##
Last Ordered#
$4,507.00 / ea
