Temperature Pressure Relief Valve
Temperature Pressure Relief Valve

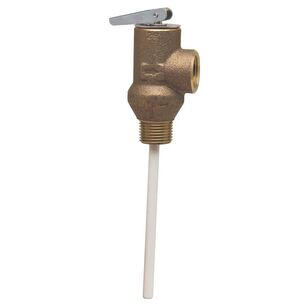

1/2 In Bronze Self Closing Temperature and Pressure Relief Valve, 100 psi, 210 degree F, 4 In Extension Thermostat
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$100.50 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
IndustryPlumbing
Shipping Dimensions (L x W x H)7.75" x 2.5" x 1.37"
Features & Benefits
- Solid bronze body construction Unique thermostat with special thermo-bonded coating Automatic reseating ASME rated and CSA listed
Documents
Marketing Information
This 1/2 inch temperature and pressure relief valve, series 1XL, is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 15,000 BTU/hr. It features a bronze body with NPT threaded male inlet and NPT threaded female outlet connections, extension thermostat with special thermo-bonded coating and test lever. Temperature relief is at 210 degree F (99 degreeC). Pressure relief range is 75 to 150 psi (5.2 to 10.3 bar).The pressure relief is set at 100 psi. (7.0 bar).
Temperature Pressure Relief Valve
BrandWATTS®
MFG #0004431
Keller #1414701
My Part ##
Last Ordered#
$100.50 / ea
