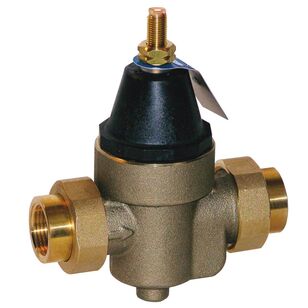

XX 3/4 In Lead Free Water Pressure Reducing Valve, Double Union, Npt Thread Female, Elastomer Disc, Max 400 psi, Adjust 25-75 psi
XX 3/4 In Lead Free Water Pressure Reducing Valve, Double Union, Npt Thread Female, Elastomer Disc, Max 400 psi, Adjust 25-75 psi
Water Pressure Reducing Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$429.00 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
IndustryPlumbing
Shipping Dimensions (L x W x H)5.625" x 7.38" x 2.63"
Features & Benefits
- NPT threaded female union inlet and outlet
- Integral stainless steel strainer removable for cleaning
- Thermoplastic seat and cage
- Sealed spring cage for accessible outdoor or pit installations
Documents
Marketing Information
This 3/4 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body construction, double union threaded female inlet and outlet connection, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage for waterworks pit installations. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
XX 3/4 In Lead Free Water Pressure Reducing Valve, Double Union, Npt Thread Female, Elastomer Disc, Max 400 psi, Adjust 25-75 psi
BrandWATTS®
MFG #0960239
Keller #1415223
