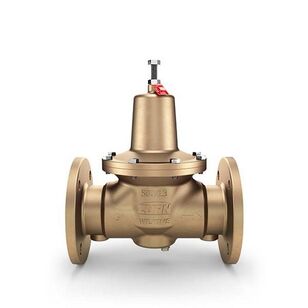

Zurn® 4-500XL3F Pressure Reducing Valve, 4 in Nominal, Flanged, 400 psi, 140 deg F, Bronze Body
Zurn® 4-500XL3F Pressure Reducing Valve, 4 in Nominal, Flanged, 400 psi, 140 deg F, Bronze Body
Zurn® Pressure Reducing Valve, 4 in Nominal, Flanged Connection, 400 psi, Water Media, 11-7/8 in Inlet to Outlet Length, 10-1/4 in Top to Inlet Center, Material Standard: ASTM B806, ASTM B584, ASTM B806, Bronze Body, Stainless Steel Stem, Noryl/Stainless Steel Trim, Bronze/Buna-N Softgoods, Lead-Free, 140 deg F, Domestic/Import: Domestic, Additional Information: 50 psi Factory Setting Pressure Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$14,665.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandZurn®
Additional Information50 psi Factory Setting Pressure Rating
Body MaterialBronze
Connection TypeFlanged
Domestic/ImportDomestic
Inlet to Outlet Length11-7/8
Material StandardASTM B806, ASTM B584, ASTM B806
MediaWater
Nominal Size4
Pressure Rating400
Softgoods MaterialBronze/Buna-N
Stem MaterialStainless Steel
Temperature Rating140
Top to Inlet Center10-1/4
Trim MaterialNoryl/Stainless Steel
Additional Information
ASSE 1003|CSA Certified|NSF/ANSI/CAN 61, 372
Features & Benefits
- Industry leading flow performance, durability and premium materials of all direct-acting pressure reducing valves on the market Delivers best-in-class flow performance of all direct-acting pressure reducing valves allowing for value engineered design optimization Compact and shortest pressure reducing valve on the market allowing for installation versatility Highly durable, all-bronze body resists corrosion and provides easy access to cartridge internals
Documents
Marketing Information
The 500XL3 pressure reducing valve works effectively for industrial water lines and commercial systems, with high-flow rate capacity and low falloff. The patented integral venturi enables the valve to have best in-class flow performance. The all-bronze body, stainless steel stem and cartridge internals provide superior corrosion-resistance and increases product life offering the ultimate value to the owner.
Zurn® 4-500XL3F Pressure Reducing Valve, 4 in Nominal, Flanged, 400 psi, 140 deg F, Bronze Body
BrandZurn®
MFG #4-500XL3F
Keller #1415238
My Part ##
Last Ordered#
$14,665.00 / ea
