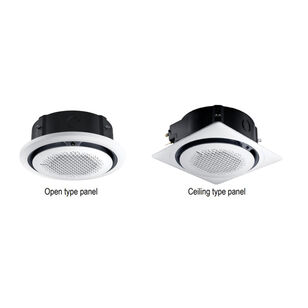

Samsung AC024DN6DCG/AA Single Zone Heat Pump Split System Indoor Unit, 208 to 230 V, 23.6 A, 1 ph, Steel
Samsung AC024DN6DCG/AA Single Zone Heat Pump Split System Indoor Unit, 208 to 230 V, 23.6 A, 1 ph, Steel
Samsung Single Zone Heat Pump Split System Indoor Unit, 208 to 230 V, 23.6 A, 97 W, 60 Hz, 1 ph, 3 Fan Speeds, 24000 Btu/hr Cooling, 27000 Btu/hr Heating, 745 cfm, 13.5 EER Rating, 23 SEER, 9.8 HSPF, 1 x 1-1/4 in Connection, R-32 Refrigerant, 36 dBA Sound Level, Steel, Finish: Galvanized/Powder-Coated, 64 to 90 deg F, 37-5/16 in Overall Length, 37-5/16 in Overall Width, 14-3/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,240.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating23.6
BTU Rating24000 Btu/hr Cooling, 27000 Btu/hr Heating
CFM Rating745
Connection Size1 x 1-1/4
EER Rating13.5
FinishGalvanized/Powder-Coated
Frequency Rating60
HSPF Rating9.8
IndustryHVAC
MaterialSteel
Number of Fan Speeds3
Overall Height14-3/8
Overall Length37-5/16
Overall Width37-5/16
Phase1
Power Rating97
Refrigerant TypeR-32
SEER Rating23
Sound Level36
Temperature Rating64 to 90
Voltage Rating208 to 230
Additional Information
AHRI Certified|ENERGY STAR Certified|ETL Listed
Features & Benefits
- The system shall provide high heating capacity at -4degF (-20degC) with heating operation down to -13degF (-25degC). The outdoor unit shall have a base pan heater as standard for optimal defrost cycle water drainage. The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort. The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch to disable unit in the event of condensate overflow. The indoor unit fascia panel shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app. Auto-restart after power loss Soft-start compressor minimizing inrush current The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable. Outdoor unit: Galvanized steel with a baked-on powder-coated finish for durability. Indoor unit: Insulated, HIPS chassis and fascia panel certified to UL94 V0. Indoor unit: Knock-out for outside air capability (booster fan connection). All heat exchangers shall be mechanically boded aluminum fin to copper tube. The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit. Three fan speed settings and auto settings Washable filter as standard The indoor unit shall have LED indicator lights and an infrared receiver The indoor unit shall not have air louvers or blades allowing full airflow without restriction Air direction control shall be achieved by creating a low-pressure area near air outlet causing discharge air to change direction angle Fixed or auto-swing air direction shall be possible with local and central controller options (10deg ~ 60deg angle).
Samsung AC024DN6DCG/AA Single Zone Heat Pump Split System Indoor Unit, 208 to 230 V, 23.6 A, 1 ph, Steel
BrandSamsung
MFG #AC024DN6DCG/AA
Keller #1415335
My Part ##
Last Ordered#
$3,240.00Â /Â ea
