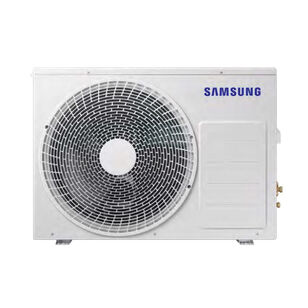

Samsung AC018DXSCCF/AA Single Zone Mini-Split Air Conditioner Condenser, 208-230 V, 9.7 A, 18000 Btu/hr Cooling, Steel
Samsung AC018DXSCCF/AA Single Zone Mini-Split Air Conditioner Condenser, 208-230 V, 9.7 A, 18000 Btu/hr Cooling, Steel
Samsung Single Zone Mini-Split Air Conditioner Condenser, 208-230 V, 9.7 A, 5.2 kW, 60 Hz, 1 ph, 18000 Btu/hr Cooling, 593 to 841 cfm Cooling CFM Rating, 12 EER Rating, 18.6 SEER, Flared Connection, 1/4 in Liquid Line, 1/2 in Suction Line, 15 A Fuse Rating, Inverter Drive, Tonnage: 1-1/2 ton, 58 dBA Cooling Sound Level, Steel, Galvanized, 23 to 122 deg F Cooling Operating Temperature, 34-5/8 in Overall Length, 25-1/8 in Overall Width, 12-3/16 in Overall Height, Brushless DC Motor, R-32 Refrigerant Type, Twin Rotary Compressor Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,274.56Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationBrushless DC Motor, R-32 Refrigerant Type, Twin Rotary Compressor Type
Amperage Rating9.7
Color/FinishGalvanized
Connection TypeFlared
Cooling BTU Rating18000
Cooling CFM Rating593 to 841
Cooling Operating Temperature23 to 122
Cooling Sound Level58
Drive TypeInverter
EER Rating12
FinishGalvanized
Frequency Rating60
Fuse Rating15
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Overall Height12-3/16
Overall Length34-5/8
Overall Width25-1/8
Phase1
Power Rating5.2
SEER Rating18.6
Suction Line Size1/2
Tonnage1-1/2
Voltage Rating208-230
Additional Information
AHRI 210-240 2023|ETL Intertek Listed|UL 60335-2-40
Features & Benefits
- Low ambient cooling down to -40 deg F The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app Auto-restart after power loss Soft-start compressor minimizing current inrush The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable Outdoor unit: Galvanized steel with a baked-on powder coated finish for durability All heat exchangers shall be mechanically bonded aluminum fin to copper tube The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by electronic an expansion valve at the outdoor unit The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the optional refrigerant leak detector is installed and configured (leak detector and MIM-B14U accessories are required) Smart pressure control feature that adjusts fan speed based on ESP delivering consistent heating and cooling power The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant Control wiring shall be 2 X 16 AWG wire No additional interface modules/adapters are required when connecting to Samsung central control options The unit shall be operated via a wireless or wired remote control with DDC type signal Wired or wireless controllers must be purchased separately The outdoor unit shall have snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit Night-time Quiet Mode: reduction of operational sound during evening hours (automatic or manual activation)
Samsung AC018DXSCCF/AA Single Zone Mini-Split Air Conditioner Condenser, 208-230 V, 9.7 A, 18000 Btu/hr Cooling, Steel
BrandSamsung
MFG #AC018DXSCCF/AA
Keller #1415343
My Part ##
Last Ordered#
$3,274.56Â /Â ea
