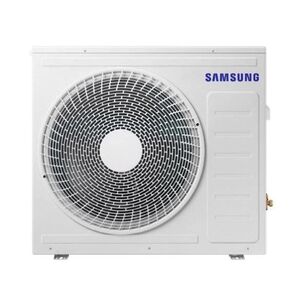

Samsung WindFree™ AC024DXSCCF/AA Split System Outdoor Unit, 208 to 230 V, 21.7 A, 24000 Btu/hr Cooling, 1 ph Phase
Samsung WindFree™ AC024DXSCCF/AA Split System Outdoor Unit, 208 to 230 V, 21.7 A, 24000 Btu/hr Cooling, 1 ph Phase
Samsung Split System Outdoor Unit, 208 to 230 V, 21.7 A, 60 Hz, 1 ph, 3 Fan Speeds, 24000 Btu/hr Cooling, 636 to 848 cfm Cooling CFM Rating, 12.2 EER Rating, 22 SEER, Connection Type: Flared, 1/4 in Liquid Line, 5/8 in Suction Line, 25 A Fuse Rating, Inverter Drive, 60 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, 23 to 122 deg F Cooling Operating Temperature, 12-3/16 in Overall Length, 34-5/8 in Overall Width, 31-3/8 in Overall Height, Additional Information: R-32 Refrigerant Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,909.60 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandSamsung
Additional InformationR-32 Refrigerant Type
Amperage Rating21.7
Connection TypeFlared
Cooling BTU Rating24000
Cooling CFM Rating636 to 848
Cooling Operating Temperature23 to 122
Cooling Sound Level60
Correct Item GroupSingle Zone Outdoor Units
Drive TypeInverter
EER Rating12.2
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating25
Liquid Line Size1/4
MaterialSteel
Number of Fan Speeds3
Overall Height31-3/8
Overall Length12-3/16
Overall Width34-5/8
Phase1
SEER Rating22
Suction Line Size5/8
Voltage Rating208 to 230
Additional Information
AHRI Certified|ETL Listed|UL 60335-2-40
Features & Benefits
- Low ambient cooling down to -40 deg F The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort Auto-restart after power loss Soft-start compressor minimizing inrush current The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable Interconnecting control wiring between the outdoor to indoor shall be 2-conductor/stranded copper/shielded cable between 18-16 AWG Outdoor unit: Galvanized steel with a baked-on powder-coated finish for durability All heat exchangers shall be mechanically bonded aluminum fin to copper tube The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit The unit shall be operated via a wireless or wired remote control with DDCtype signal (purchased separately) No additional interface modules/adapters are required when connecting to Samsung central control options Wired or wireless controllers must be purchased separately The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit Night-time Quiet Mode: reduction of operational sound during evening hours (automatic or manual activation) Emergency Temperature Output (ETO) function: when indoor unit is in error status or when room temperature exceeds a configurable temperature level, the system outputs a signal to an external source (e.g., backup system, building management system, alert device like status light, warning lamp, or buzzer) Maximum Current Control configurable from 50% - 100% via outdoor unit, wired controller, or central controls
Marketing Information
Keep things cool. This cooling-only system with low ambient cooling capability down to -40 deg is ideal for machine and computer rooms and other commercial applications.
