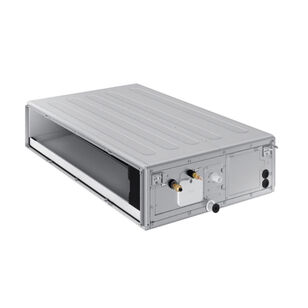

Samsung AJ018DNHDCG/AA High Static Pressure Duct S Indoor Unit, 208-230 V, 2.1 A, 1 ph, Steel
Samsung AJ018DNHDCG/AA High Static Pressure Duct S Indoor Unit, 208-230 V, 2.1 A, 1 ph, Steel
Samsung High Static Pressure Duct S Indoor Unit, 208-230 V, 2.1 A, 5.28 kW, 60 Hz, 1 ph, 18000 Btu/hr Cooling, 21000 Btu/hr Heating, 332 to 579 cfm, Flared Connection, R-32 Refrigerant, Tonnage: 1.49 ton, 40 dBA Sound Level, Steel, Galvanized, 33-7/16 in Overall Length, 27-9/16 in Overall Width, 9-13/16 in Overall Height, Brushless DC Motor, 1/4 in Liquid Line, 1/2 in Suction Line
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,195.72Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationBrushless DC Motor, 1/4 " Liquid Line, 1/2 " Suction Line
Amperage Rating2.1
BTU Rating18000 Btu/hr Cooling, 21000 Btu/hr Heating
CFM Rating332 to 579
Connection TypeFlared
FinishGalvanized
Frequency Rating60
MaterialSteel
Overall Height9-13/16
Overall Length33-7/16
Overall Width27-9/16
Phase1
Power Rating5.28
Refrigerant TypeR-32
Sound Level40
Tonnage1.49
Voltage Rating208-230
Additional Information
ETL Intertek Listed|UL 60335-2-40
Features & Benefits
- The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch that disables indoor in the event of condensate overflow The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire Insulated, galvanized steel The heat exchanger shall be mechanically bonded aluminum fin to copper tube Refrigerant flow shall be controlled by electronic an expansion valve at the outdoor unit The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the optional refrigerant leak detector is installed and configured (leak detector and MIM-B14U accessories are required) Smart pressure control feature that adjusts fan speed based on ESP delivering consistent heating and cooling power The indoor unit shall have a smart-tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve to increase or decrease airflow The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant Control wiring shall be 2 X 16 AWG wire The unit shall be operated via a wireless or wired remote control with DDC type signal Dual set temperature support when connected to supported controllers Wired or wireless controllers must be purchased separately External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required) External heat control configuration settings include outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIM-B14U accessory required) Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required) External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating The outdoor unit shall have snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit
Samsung AJ018DNHDCG/AA High Static Pressure Duct S Indoor Unit, 208-230 V, 2.1 A, 1 ph, Steel
BrandSamsung
MFG #AJ018DNHDCG/AA
Keller #1415355
