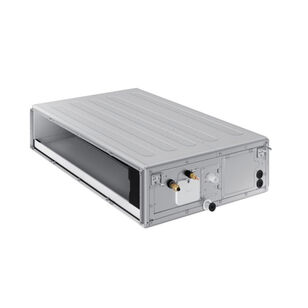

Samsung AJ009DNHDCG/AA Multi-Split Indoor Unit, 208 to 230 V, 2.1 A, 9000 Btu/hr Cooling, 12000 Btu/hr Heating BTU
Samsung AJ009DNHDCG/AA Multi-Split Indoor Unit, 208 to 230 V, 2.1 A, 9000 Btu/hr Cooling, 12000 Btu/hr Heating BTU
Samsung Multi-Split Indoor Unit, 208 to 230 V, 2.1 A, 153 W, 60 Hz, 1 ph, 9000 Btu/hr Cooling, 12000 Btu/hr Heating, 456 cfm, Pipe Connection, R-32 Refrigerant, 30 dBA Sound Level, Steel, Finish: Galvanized, 33-7/16 in Overall Length, 9-13/16 in Overall Width, 27-9/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,261.52Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating2.1
BTU Rating9000 Btu/hr Cooling, 12000 Btu/hr Heating
CFM Rating456
Connection TypePipe
FinishGalvanized
Frequency Rating60
IndustryHVAC
MaterialSteel
Overall Height27-9/16
Overall Length33-7/16
Overall Width9-13/16
Phase1
Power Rating153
Refrigerant TypeR-32
Sound Level30
Voltage Rating208 to 230
Additional Information
ETL Listed
Features & Benefits
- The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch that disables indoor in the event of condensate overflow. The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app. The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire. Insulated, galvanized steel. The heat exchanger shall be mechanically bonded aluminum fin to copper tube. Refrigerant flow shall be controlled by electronic an expansion valve at the outdoor unit. The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the optional refrigerant leak detector is installed and configured (leak detector and MIM-B14U accessories are required). Indoor Fan Smart pressure control feature that adjusts fan speed based on ESP delivering consistent heating and cooling power The indoor unit shall have a smart-tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve to increase or decrease airflow. The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant Controls Control wiring shall be 2 X 16 AWG wire. The unit shall be operated via a wireless or wired remote control with DDC type signal. Dual set temperature support when connected to supported controllers. Wired or wireless controllers must be purchased separately External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required). External heat control configuration settings include outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIM-B14U accessory required). Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required). External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating
Samsung AJ009DNHDCG/AA Multi-Split Indoor Unit, 208 to 230 V, 2.1 A, 9000 Btu/hr Cooling, 12000 Btu/hr Heating BTU
BrandSamsung
MFG #AJ009DNHDCG/AA
Keller #1415356
My Part ##
Last Ordered#
$2,261.52Â /Â ea
