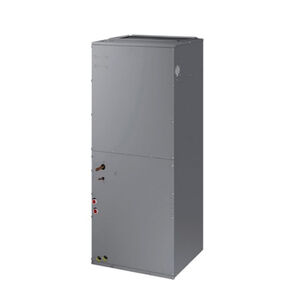

Samsung Eclipse Series AC018DNZDCG/AA Air Handler, 5500 to 23000 Btu/hr Cooling, 18000 to 20000 Btu/hr BTU, 636 cfm
Samsung Eclipse Series AC018DNZDCG/AA Air Handler, 5500 to 23000 Btu/hr Cooling, 18000 to 20000 Btu/hr BTU, 636 cfm
Samsung Air Handler, 5500 to 23000 Btu/hr Cooling Capacity, 5500 to 30500 Btu/hr Heating Capacity, 18000 to 20000 Btu/hr BTU Rating, 208 to 230 V Voltage Rating, 16 A Amperage Rating, 410 W Wattage, 60 Hz Frequency Rating, 1 ph Phase, Inverter Driven, Twin BLDC Rotary Compressor Type, 636 cfm Rating, Multi-Position Configuration, 12 EER Rating, 18 SEER Rating, Connection Type: FNPT, R-32 Refrigerant Type, 40 dBA Sound Level, 3/4 in Connection, 3 Number of Speeds, Steel, Galvanized, 64 to 90 deg F Temperature Rating, 48-3/4 in H x 23-1/4 in W x 21 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,128.84Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating16
BTU Rating18000 to 20000
CFM Rating636
Compressor TypeInverter Driven, Twin BLDC Rotary
ConfigurationMulti-Position
Connection Size3/4
Connection TypeFNPT
Cooling Capacity5500 to 23000
Dimensions48-3/4 " H x 23-1/4 " W x 21 " D
EER Rating12
FinishGalvanized
Frequency Rating60
Heating Capacity5500 to 30500
IndustryHVAC
MaterialSteel
Number of Speeds3
Phase1
Refrigerant TypeR-32
SEER Rating18
Sound Level40
Temperature Rating64 to 90
Voltage Rating208 to 230
Wattage410
Additional Information
AHRI Certified|ENERGY STAR Certified|ETL Listed
Features & Benefits
- The system shall provide high heating capacity at -4degF (-20degC) with heating operation down to -13degF (-25degC). The outdoor unit shall have a base pan heater as standard for optimal defrost cycle water drainage. The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort. The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app. Auto-restart after power loss Soft-start compressor minimizing current inrush The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable. Outdoor unit: Galvanized steel with a baked-on powder coated finish for durability. Indoor unit: Insulated, galvanized steel. All heat exchangers shall be mechanically bonded aluminum fin to copper tube. The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire (when accessory electric heat kits are not installed). The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by electronic an expansion valve at the outdoor unit The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection (MIM-B14U accessory is required). Three fan speeds and auto setting Control wiring shall be 2 X 16 AWG wire. No additional interface modules/adapters are required when connecting to Samsung central control options. The unit shall be operated via a wireless or wired remote control with DDC type signal. Dual set temperature support when connected to supported controllers. Wired or wireless controllers must be purchased separately. External Heat Control (not required for use with VHK-***C Electric Heat Kits)
Samsung Eclipse Series AC018DNZDCG/AA Air Handler, 5500 to 23000 Btu/hr Cooling, 18000 to 20000 Btu/hr BTU, 636 cfm
BrandSamsung
MFG #AC018DNZDCG/AA
Keller #1415357
