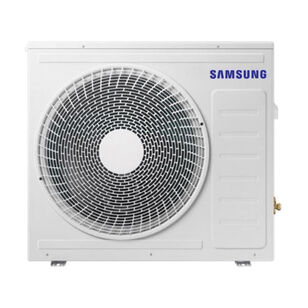

Samsung WindFree™ AC018DXSCCG/AA Heat Pump Outdoor Unit, 208 to 230 V, 9.7 A Cooling, 12.9 A Heating, 1 ph Phase, Steel
Samsung WindFree™ AC018DXSCCG/AA Heat Pump Outdoor Unit, 208 to 230 V, 9.7 A Cooling, 12.9 A Heating, 1 ph Phase, Steel
Samsung Heat Pump Outdoor Unit, 208 to 230 V, 9.7 A Cooling, 12.9 A Heating, 153 W, 60 Hz, 1 ph, 3 Fan Speeds, 20000 Btu/hr Heating, 18000 Btu/hr Cooling, 441 to 615 cfm Heating CFM Rating, 441 to 615 cfm Cooling CFM Rating, 12.2 EER Rating, 20.5 SEER, 9.5 HSPF, Connection Type: Flared, 1/4 in Liquid Line, 1/2 in Suction Line, 25 A Fuse Rating, Inverter Drive, 58 dBA Heating Sound Level, 58 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, -13 to 75 deg F Heating Operating Temperature, 23 - 122 deg F Cooling Operating Temperature, 12-3/16 in Overall Length, 34-5/8 in Overall Width, 31-3/8 in Overall Height, Additional Information: R-32 Refrigerant Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,635.36 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationR-32 Refrigerant Type
Amperage Rating9.7 A Cooling, 12.9 A Heating
Color/FinishGalvanized/Powder-Coated
Connection TypeFlared
Cooling BTU Rating18000
Cooling CFM Rating441 to 615
Cooling Operating Temperature23 - 122
Cooling Sound Level58
Correct Item GroupSingle Zone Outdoor Units
Drive TypeInverter
EER Rating12.2
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating25
Heating BTU Rating20000
Heating CFM Rating441 to 615
Heating Operating Temperature-13 to 75
Heating Sound Level58
HSPF Rating9.5
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Number of Fan Speeds3
Overall Height31-3/8
Overall Length12-3/16
Overall Width34-5/8
Phase1
Power Rating153
SEER Rating20.5
Suction Line Size1/2
Voltage Rating208 to 230
Additional Information
AHRI Certified|ENERGY STAR Certified|ETL Listed
Features & Benefits
- The system shall provide high heating capacity at -4 deg F (-20 deg C) with heating operation down to -13 deg F (-25 deg C) The outdoor unit shall have a base pan heater as standard for optimal defrost cycle water drainage The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable Interconnecting control wiring between the outdoor to indoor shall be 2-conductor/stranded copper/shielded cable between 18-16 AWG Outdoor unit: Galvanized steel with a baked-on powder-coated finish for durability All heat exchangers shall be mechanically bonded aluminum fin to copper tube The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit The unit shall be operated via a wireless or wired remote control with DDC-type signal (purchased separately) Dual set temperature support when connected to supported controllers No additional interface modules/adapters are required when connecting to Samsung central control options Wired or wireless controllers must be purchased separately External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required) External heat control configuration settings includes outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIMB14U accessory required) Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required) External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating 7-segment digital display on front of unit to display temperature and unit status Washable main filter as standard accessible from the top of the unit
Documents
Samsung WindFree™ AC018DXSCCG/AA Heat Pump Outdoor Unit, 208 to 230 V, 9.7 A Cooling, 12.9 A Heating, 1 ph Phase, Steel
BrandSamsung
MFG #AC018DXSCCG/AA
Keller #1415363
