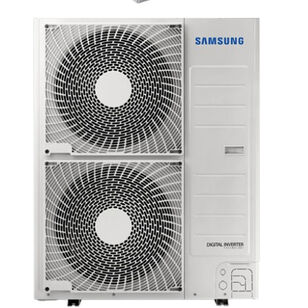

Samsung Duct S Series AC048DXSCCG/AA Single Zone Heat Pump Split System Outdoor Unit, 208 to 230 V, 32 A, 1 ph
Samsung Duct S Series AC048DXSCCG/AA Single Zone Heat Pump Split System Outdoor Unit, 208 to 230 V, 32 A, 1 ph
Samsung Single Zone Heat Pump Split System Outdoor Unit, Duct S Series, 208 to 230 V, 32 A, 244 W, 60 Hz, 1 ph, 54000 Btu/hr Heating, 47000 Btu/hr Cooling, 1554 cfm Heating CFM Rating, 1554 cfm Cooling CFM Rating, 11.7 EER Rating, 18 SEER, 9.5 HSPF, Pipe Connection, Inverter Driven, Twin BLDC Rotary Compressor, R-32 Refrigerant, 62 dB Heating Sound Level, 62 dB Cooling Sound Level, Steel, Galvanized/Powder-Coated, -13 to 75 deg F Heating Operating Temperature, -4 to 122 deg F Cooling Operating Temperature, 37 in Overall Length, 13 in Overall Width, 55-7/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,284.76Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating32
Compressor TypeInverter Driven, Twin BLDC Rotary
Connection TypePipe
Cooling BTU Rating47000
Cooling CFM Rating1554
Cooling Operating Temperature-4 to 122
Cooling Sound Level62
EER Rating11.7
FinishGalvanized/Powder-Coated
Frequency Rating60
Heating BTU Rating54000
Heating CFM Rating1554
Heating Operating Temperature-13 to 75
Heating Sound Level62
HSPF Rating9.5
IndustryHVAC
MaterialSteel
Overall Height55-7/8
Overall Length37
Overall Width13
Phase1
Power Rating244
Refrigerant TypeR-32
SEER Rating18
SeriesDuct S Series
Voltage Rating208 to 230
Additional Information
AHRI Certified|ENERGY STAR Certified|ETL Listed|UL 60335-2-40
Features & Benefits
- The system shall provide high heating capacity at -4degF (-20degC) with heating operation down to -13degF (-25degC). The outdoor unit shall have a base pan heater as standard for optimal defrost cycle water drainage. The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch that disables indoor in the event of condensate overflow. The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort. The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app. Auto-restart after power loss Soft-start compressor minimizing current inrush The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable. Outdoor unit: Galvanized steel with a baked-on powder coated finish for durability. Indoor unit: Insulated, galvanized steel. All heat exchangers shall be mechanically bonded aluminum fin to copper tube. The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire. The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by electronic an expansion valve at the outdoor unit. The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the optional refrigerant leak detector is installed and configured (leak detector and MIM-B14U accessories are required). Smart pressure control feature that adjusts fan speed based on ESP delivering consistent heating and cooling power The indoor unit shall have a smart-tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve to increase or decrease airflow. The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant Control wiring shall be 2 X 16 AWG wire. No additional interface modules/adapters are required when connecting to Samsung central control options.
Samsung Duct S Series AC048DXSCCG/AA Single Zone Heat Pump Split System Outdoor Unit, 208 to 230 V, 32 A, 1 ph
BrandSamsung
MFG #AC048DXSCCG/AA
Keller #1415367
My Part ##
Last Ordered#
$9,284.76Â /Â ea
