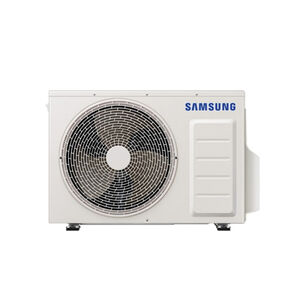

Samsung WindFree Series AC009DXSCCG/AA Heat Pump Split System, 208 to 230 V, 9.5 A, 1 ph, Steel
Samsung WindFree Series AC009DXSCCG/AA Heat Pump Split System, 208 to 230 V, 9.5 A, 1 ph, Steel
Samsung Heat Pump Split System, WindFree Series, 208 to 230 V, 9.5 A, 27 W, 60 Hz, 1 ph, 3 Fan Speeds, 9000 Btu/hr Cooling, 12000 Btu/hr Heating, 258 cfm, 13.8 EER Rating, 22.1 SEER, 9.5 HSPF, Pipe Connection, R-32 Refrigerant, 53 dBA Sound Level, Steel, Finish: Galvanized/Powder-Coated, 0 to 122 deg F Cooling, -13 to 75 deg F Heating, 31-1/8 in Overall Length, 11-3/16 in Overall Width, 21-5/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,770.20 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating9.5
BTU Rating9000 Btu/hr Cooling, 12000 Btu/hr Heating
CFM Rating258
Connection TypePipe
EER Rating13.8
FinishGalvanized/Powder-Coated
Frequency Rating60
HSPF Rating9.5
IndustryHVAC
MaterialSteel
Number of Fan Speeds3
Overall Height21-5/8
Overall Length31-1/8
Overall Width11-3/16
Phase1
Power Rating27
Refrigerant TypeR-32
SEER Rating22.1
SeriesWindFree Series
Sound Level53
Temperature Rating0 to 122 deg F Cooling, -13 to 75 deg F Heating
Voltage Rating208 to 230
Additional Information
AHRI Certified|ENERGY STAR Certified|ETL Listed|UL 60335-2-40
Features & Benefits
- The system shall provide high heating capacity at -4degF (-20degC) with heating operation down to -13degF (-25degC). The outdoor unit shall have a base pan heater as standard for optimal defrost cycle water drainage. The indoor unit shall feature WindFree™* mode. When activated in cooling mode, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit, preventing cold air drafts on occupants. The system shall feature comfort humidity control. Utilizing an integral humidity sensor, the system optimizes the indoor unit coil temperature according to the dew point, maximizing energy savings while still providing space dehumidification and occupant comfort. The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch to disable unit in the event of condensate overflow. The indoor unit fascia panel shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app. Auto-restart after power loss Soft-start compressor minimizing inrush current The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable. Outdoor unit: Galvanized steel with a baked-on powder coated finish for durability. Indoor unit: Insulated, galvanized steel. All heat exchangers shall be mechanically bonded aluminum fin to copper tube. The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire. The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by electronic an expansion valve at the outdoor unit. The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the optional refrigerant leak detector is installed and configured (leak detector and MIM-B14U accessories are required). Smart pressure control feature that adjusts fan speed based on ESP delivering consistent heating and cooling power The indoor unit shall have a smart-tuning function that can provide optimized comfort by allowing the occupant to offset the fan CFM curve to increase or decrease airflow. The indoor unit shall have automatic air volume scanning for simple setup and optimized comfort settings for the occupant
Samsung WindFree Series AC009DXSCCG/AA Heat Pump Split System, 208 to 230 V, 9.5 A, 1 ph, Steel
BrandSamsung
MFG #AC009DXSCCG/AA
Keller #1415368
