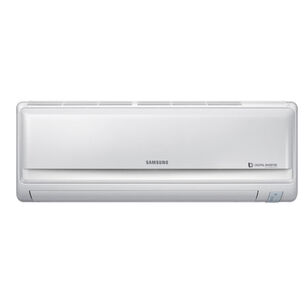

Samsung AC030DNTDCG/AA Ductless Single Zone Mini-Split Indoor Unit, 208-230 V, 17.1 A Cooling, 19.1 A Heating, Plastic
Samsung AC030DNTDCG/AA Ductless Single Zone Mini-Split Indoor Unit, 208-230 V, 17.1 A Cooling, 19.1 A Heating, Plastic
Samsung Ductless Single Zone Mini-Split Indoor Unit, 208-230 V, 17.1 A Cooling, 19.1 A Heating, 8.7 kW, 60 Hz, 1 ph, 3 Fan Speeds, 30000 Btu/hr Cooling, 32000 Btu/hr Heating, 671 to 777 cfm, 12.5 EER Rating, 21 SEER, 9.5 HSPF, Flared Connection, 40 A Fuse Rating, Inverter Drive, 49 dBA Sound Level, Wall Mounting, Plastic, 64 to 90 deg F Cooling, <=86 deg F Heating, 50-3/8 in Overall Length, 13-5/8 in Overall Width, 10 in Overall Height, Brushless DC Motor, R-32 Refrigerant Type, Twin Rotary Compressor Type, 3/8 in Liquid Line, 5/8 in Suction Line
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,797.20Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationBrushless DC Motor, R-32 Refrigerant Type, Twin Rotary Compressor Type, 3/8 " Liquid Line, 5/8 " Suction Line
Amperage Rating17.1 A Cooling, 19.1 A Heating
BTU Rating30000 Btu/hr Cooling, 32000 Btu/hr Heating
CFM Rating671 to 777
Connection TypeFlared
Drive TypeInverter
EER Rating12.5
Frequency Rating60
Fuse Rating40
HSPF Rating9.5
MaterialPlastic
Mounting TypeWall
Number of Fan Speeds3
Overall Height10
Overall Length50-3/8
Overall Width13-5/8
Phase1
Power Rating8.7
SEER Rating21
Sound Level49
Temperature Rating64 to 90 deg F Cooling, <=86 deg F Heating
Voltage Rating208-230
Additional Information
AHRI 210-240 2023|ENERGY STAR Certified|ETL Intertek Listed|UL 60335-2-40
Features & Benefits
- The system shall provide high heating capacity at -4 deg F (-20 deg C) with heating operation down to -13 deg F (-25 deg C) The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app The indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket All heat exchangers shall be mechanically boded aluminum fin to copper tube The system shall utilize low-GWP R-32 refrigerant Three fan speed settings and auto settings Automatic (motorized) vertical swing (up/down) louver Control wiring shall be 2 X 16 AWG The unit shall be operated via a wireless or wired remote control with DDC-type signal (purchased separately) Dual set temperature support when connected to supported controllers No additional interface modules/adapters are required when connecting to Samsung central control options Wired or wireless controllers must be purchased separately External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required) External heat control configuration settings include outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIM-B14U accessory required) Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required) External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating 7-segment digital display on the front of the unit to display temperature and unit status Washable main filter as standard accessible from the top of the unit Night-time Quiet Mode: reduction of operational sound during evening hours (automatic or manual activation)
Samsung AC030DNTDCG/AA Ductless Single Zone Mini-Split Indoor Unit, 208-230 V, 17.1 A Cooling, 19.1 A Heating, Plastic
BrandSamsung
MFG #AC030DNTDCG/AA
Keller #1415376
