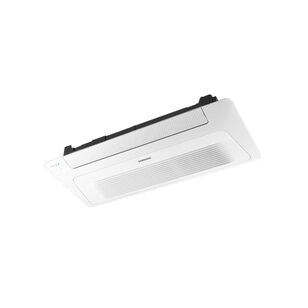

Samsung WindFree Series AC009DN1DCG/AA Multi-Split Indoor Unit, 208 to 230 V, 0.26 A, 1 ph, Polystyrene
Samsung WindFree Series AC009DN1DCG/AA Multi-Split Indoor Unit, 208 to 230 V, 0.26 A, 1 ph, Polystyrene
Samsung Multi-Split Indoor Unit, WindFree Series, 208 to 230 V, 0.26 A, 27 W, 60 Hz, 1 ph, 3 Fan Speeds, 9000 Btu/hr Cooling, 12000 Btu/hr Heating, 258 cfm, Pipe Connection, R-32 Refrigerant, 32 dBA Sound Level, Polystyrene, 64 to 90 deg F, 38-3/16 in Overall Length, 5-5/16 in Overall Width, 16-1/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,169.64 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating0.26
BTU Rating9000 Btu/hr Cooling, 12000 Btu/hr Heating
CFM Rating258
Connection TypePipe
Frequency Rating60
IndustryHVAC
MaterialPolystyrene
Number of Fan Speeds3
Overall Height16-1/8
Overall Length38-3/16
Overall Width5-5/16
Phase1
Power Rating27
Refrigerant TypeR-32
SeriesWindFree Series
Sound Level32
Temperature Rating64 to 90
Voltage Rating208 to 230
Additional Information
ETL Listed
Features & Benefits
- The indoor unit shall feature WindFree™* mode. When activated in cooling mode, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit, preventing cold air drafts on occupants. The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch to disable unit in the event of condensate overflow. The indoor unit fascia panel shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app. The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable. Insulated, HIPS chassis and fascia panel certified to UL94 V0. Refrigerant System The heat exchanger shall be mechanically boded aluminum fin to copper tube. Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit. The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the indoor unit refrigerant leak detector detects a refrigerant leak (MIM-B14U accessory is required). Indoor Fan Three fan speed settings and auto settings Washable filter as standard Fascia panel shall have LED display, infrared receiver, and a motorized louver The WindFree™* function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants. The WindFree™* feature is optional and can be enabled using central or local control options. Controls Control wiring shall be 2 X 16 AWG. The unit shall be operated via a wireless or wired remote control with DDCtype signal (purchased separately) Dual set temperature support when connected to supported controllers. External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required). External heat control configuration settings include outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIM-B14U accessory required). Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required). External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat
