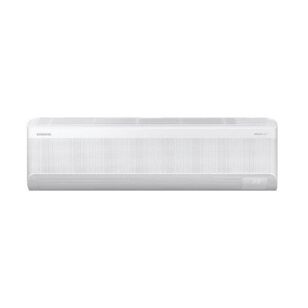

Samsung WindFree™ AC024DNADCG/AA Split System Indoor Unit, 208 to 230 V, 15.4 A, 24000 Btu/hr BTU, 1 ph Phase, HIPS
Samsung WindFree™ AC024DNADCG/AA Split System Indoor Unit, 208 to 230 V, 15.4 A, 24000 Btu/hr BTU, 1 ph Phase, HIPS
Samsung Split System Indoor Unit, 208 to 230 V, 15.4 A, 60 Hz, 1 ph, 3 Fan Speeds, 24000 Btu/hr, 466 to 629 cfm, 9.8 EER Rating, 19.1 SEER, Connection Type: Flared, 1/4 x 5/8 in Connection, R-32 Refrigerant, 25 A Fuse Rating, Inverter Drive, 44 dBA Sound Level, Wall Mounting, HIPS, 64 to 90 deg F, 11-13/16 in Overall Length, 41-1/2 in Overall Width, 8-1/2 in Overall Height, Additional Information: 5/8 in Gas Pipe Size, 1/4 in Liquid Pipe Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,385.72 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information5/8 " Gas Pipe Size, 1/4 " Liquid Pipe Size
Amperage Rating15.4
BTU Rating24000
CFM Rating466 to 629
Connection Size1/4 x 5/8
Connection TypeFlared
Correct Item GroupOther Mini Split Indoor
Drive TypeInverter
EER Rating9.8
Frequency Rating60
Fuse Rating25
MaterialHIPS
Mounting TypeWall
Number of Fan Speeds3
Overall Height8-1/2
Overall Length11-13/16
Overall Width41-1/2
Phase1
Refrigerant TypeR-32
SEER Rating19.1
Sound Level44
Temperature Rating64 to 90
Voltage Rating208 to 230
Additional Information
AHRI Certified|ETL Listed|UL 60335-2-40
Features & Benefits
- Low ambient cooling down to -40 deg F The indoor unit shall feature WindFree™ mode. When activated in cooling mode the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app Interconnecting control wiring between the outdoor to indoor shall be 2-conductor/stranded copper/shielded cable between 18-16 AWG The indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket All heat exchangers shall be mechanically bonded aluminum fin to copper tube The indoor unit shall have easy access to wire, pipe, and drain connections via the access panel on the bottom of the unit for simple installation and service The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit Three fan speed settings and auto settings Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The unit shall be operated via a wireless or wired remote control with DDCtype signal (purchased separately) No additional interface modules/adapters are required when connecting to Samsung central control options Wired or wireless controllers must be purchased separately 7-segment digital display on front of unit to display temperature and unit status Washable main filter as standard accessible from the top of the unit The outdoor unit shall have a snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit Emergency Temperature Output (ETO) function: when indoor unit is in error status or when room temperature exceeds a configurable temperature level, the system outputs a signal to an external source (e.g., backup system, building management system, alert device like status light, warning lamp, or buzzer) Maximum Current Control configurable from 50% - 100% via outdoor unit, wired controller, or central controls
Samsung WindFree™ AC024DNADCG/AA Split System Indoor Unit, 208 to 230 V, 15.4 A, 24000 Btu/hr BTU, 1 ph Phase, HIPS
BrandSamsung
MFG #AC024DNADCG/AA
Keller #1415390
My Part ##
Last Ordered#
$2,385.72 / ea
