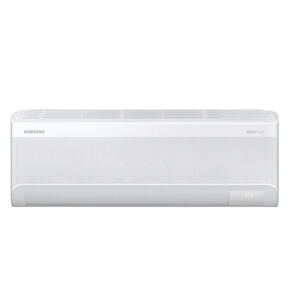

Samsung WindFree Series AJ015DNADCG/AA Multi-Split Indoor Unit, 208 to 230 V, 0.5 A, 1 ph, Steel
Samsung WindFree Series AJ015DNADCG/AA Multi-Split Indoor Unit, 208 to 230 V, 0.5 A, 1 ph, Steel
Samsung Multi-Split Indoor Unit, WindFree Series, 208 to 230 V, 0.5 A, 27 W, 60 Hz, 1 ph, 3 Fan Speeds, 15000 Btu/hr Cooling, 15000 Btu/hr Heating, 623 cfm, Pipe Connection, R-32 Refrigerant, 41 dBA Sound Level, Steel, Finish: Galvanized, 64 to 90 deg F, 41-9/16 in Overall Length, 11-3/4 in Overall Width, 8-7/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,180.44 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating0.5
BTU Rating15000 Btu/hr Cooling, 15000 Btu/hr Heating
CFM Rating623
Connection TypePipe
FinishGalvanized
Frequency Rating60
MaterialSteel
Number of Fan Speeds3
Overall Height8-7/16
Overall Length41-9/16
Overall Width11-3/4
Phase1
Power Rating27
Refrigerant TypeR-32
SeriesWindFree Series
Sound Level41
Temperature Rating64 to 90
Voltage Rating208 to 230
Additional Information
AHRI Certified|ETL Listed
Features & Benefits
- The indoor unit shall feature WindFree™* mode. When activated in cooling mode the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants. The indoor unit shall have integral Wi-Fi capability as standard. Outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable. The indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket The indoor unit shall have easy access to wire, pipe, and drain connections via the access panel on the bottom of the unit for simple installation and service The heat exchanger shall be mechanically bonded fin to copper tube Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit. The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection (MIM-B14U accessory is required). The indoor fan shall be a single, antibacterial cross-flow type Three fan speeds and auto settings Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The indoor unit shall ship with a rechargeable, solar-cell wireless controller. The wireless controller battery shall be charged with a USB C cable or the integral solar panel. The included wireless controller shall have a pixel display that is visible in low light conditions. The indoor unit shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app. Dual set temperature support when connected to supported wired controllers. The indoor unit shall have a simple connection for condensate overflow detection devices or any normally closed contact for simple unit shutdown. Interconnect control wire between the outdoor and indoor unit shall be 16AWG X 2 7-segment digital display on the front of the unit to display temperature and unit status Washable main filter as standard accessible from the top of the unit System energy consumption can be viewed using the Samsung SmartThings mobile app or on the indoor unit display using the included wireless controller (conditions apply).
