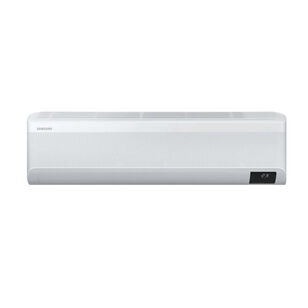

Samsung WindFree™ IAQ AR09DXKAPWKNCV Multi-Split Indoor Unit, 208-230 V, 0.3 A, 1 ph, Polystyrene, Wall Mounting
Samsung WindFree™ IAQ AR09DXKAPWKNCV Multi-Split Indoor Unit, 208-230 V, 0.3 A, 1 ph, Polystyrene, Wall Mounting
Samsung Multi-Split Indoor Unit, 208-230 V, 0.3 A, 2.64 kW, 60 Hz, 1 ph, 3 Fan Speeds, 9000 Btu/hr Cooling, 11000 Btu/hr Heating, 309 to 378 cfm Cooling, 340 to 396 cfm Heating, Flared Connection, R-32 Refrigerant, Tonnage: 3/4 ton, 37 dBA Sound Level, Wall Mounting, Polystyrene, 64 to 90 deg F Cooling, <=86 deg F Heating, 32-5/16 in Overall Length, 13-9/16 in Overall Width, 8-7/16 in Overall Height, For Use With: Multi-Zone Systems, Brushless DC Motor, 14 AWG Wire Size, 1/4 in Liquid Line, 3/8 in Suction Line
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,018.44 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationBrushless DC Motor, 14 AWG Wire Size, 1/4 " Liquid Line, 3/8 " Suction Line
Amperage Rating0.3
BTU Rating9000 Btu/hr Cooling, 11000 Btu/hr Heating
CFM Rating309 to 378 cfm Cooling, 340 to 396 cfm Heating
Connection TypeFlared
Frequency Rating60
IndustryHVAC
MaterialPolystyrene
Mounting TypeWall
Number of Fan Speeds3
Overall Height8-7/16
Overall Length32-5/16
Overall Width13-9/16
Phase1
Power Rating2.64
Refrigerant TypeR-32
Sound Level37
Suitable For Use WithMulti-Zone Systems
Temperature Rating64 to 90 deg F Cooling, <=86 deg F Heating
Tonnage3/4
Voltage Rating208-230
Additional Information
ETL Intertek Listed|UL 60335-2-40
Features & Benefits
- The indoor unit shall feature WindFree™* mode. When activated in cooling mode the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants The indoor unit shall feature a PM1.0 electrostatic precipitator filter capable of capturing dust particles as small as 1 micron The indoor unit shall be capable of sensing dust particulate matter in the air stream and displaying the appropriate measured data on the unit's display The indoor unit shall have integral Wi-Fi capability as standard The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable The Indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket The indoor unit shall have easy access to wire, pipe, and drain connections via the access panel on the bottom of the unit for simple installation and service The heat exchanger shall be mechanically bonded fin to copper tube Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit The indoor fan shall be a single, antibacterial cross-flow type Three fan speeds and auto settings Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The indoor unit shall ship with a rechargeable, solar-cell wireless controller. The wireless controller battery shall be charged with a USB C cable or the integral solar panel The included wireless controller shall have a pixel display that is visible in low light conditions The indoor unit shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app Dual set temperature support when connected to supported wired controllers The indoor unit shall have a simple connection for condensate overflow detection devices or any normally closed contact for simple unit shutdown Interconnect control wire between the outdoor and indoor unit shall be 16AWG X 2 7-segment digital display on the front of the unit to display temperature and unit status Washable main filter as standard accessible from the top of the unit
Samsung WindFree™ IAQ AR09DXKAPWKNCV Multi-Split Indoor Unit, 208-230 V, 0.3 A, 1 ph, Polystyrene, Wall Mounting
BrandSamsung
MFG #AR09DXKAPWKNCV
Keller #1415433
My Part ##
Last Ordered#
$1,018.44 / ea
