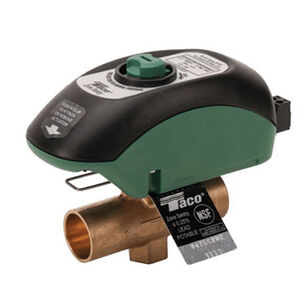

Taco Comfort Solutions® Z075F2-2 Potable Water Zone Valve, 3/4 in, Inverted Flared, 3.5 Cv, Brass
Taco Comfort Solutions® Z075F2-2 Potable Water Zone Valve, 3/4 in, Inverted Flared, 3.5 Cv, Brass
Taco Comfort Solutions® Potable Water Zone Valve, 3/4 in Nominal, Inverted Flared Connection, Number of Ways/Position: 2-Ways, 300 psi, 3.5 Cv Flow Coefficient (Cv), Brass Stem, Brass Trim, Brass Packing, EPDM Disc, PTFE Seat, Brass, 11.44 W, 0.48 A Power Consumption, Normally Open, Normally Closed, 0.5 A, 24 VAC, 1.44 W, VA Rating: 40 VA, -7 to 104 deg C, 60.3 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$269.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Amperage Rating0.5
ConfigurationNormally Open, Normally Closed
Connection TypeInverted Flared
Dimensions60.3 " W
Disc MaterialEPDM
Flow Coefficient (Cv)3.5
MaterialBrass
Nominal Size3/4
Number of Ways/Position2-Ways
Packing MaterialBrass
Power Consumption11.44 W, 0.48 A
Power Rating1.44
Pressure Rating300
Seat MaterialPTFE
Stem MaterialBrass
Temperature Rating-7 to 104
Trim MaterialBrass
VA Rating40
Voltage Rating24
Additional Information
ANSI 372 Specified|NSF 61 Certified
Features & Benefits
- Universal installation orientation Up to 12 valves on one 40 VA transformer Multi-function LED assists with troubleshooting Easy to wire quick-connections Bi-directional flow The actuator mounts on the valve in either direction Quick release actuator mounting clip Manual override button Positional indicator shows the ball valves actual position
Marketing Information
The Taco zone Sentry® zone valve enhances the overall performance of any zone valve system. The unique patented technology in the zone sentry utilizes a microcircuit-based logic to control a gear driven electronic actuator which drives a ball valve-based body design. All this adds up to a zone valve that leads the industry in energy efficiency, flow capacity (Cv), shut-off pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40 VA transformer.
