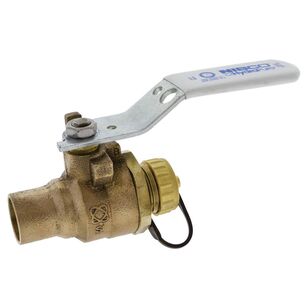

Name: S585-66-LF-HC 3/4 W/ 3/4 HOSE CAP SS TRM
Brand: NIBCO®
SKU: 1415707
Price: 285.6 USD
Availability: OutOfStock

Attributes

BrandNIBCO®

All ApplicationsLead-Free

All Basic MaterialLead-Free

All Type Of ItemValve

ApplicationsLead-Free

End ConnectionSolder

Height1.56"

IndustryPlumbing

Length6.28"

MaterialLead-free

Mpg3F

Nominal Pipe Size3/4

Nominal Size 13/4".

Nominal Size 23/4".

Potable Water CodeLL Compliant NSF/ANSI 372

Prop 65 WarningYes

Seat Seal MaterialRPTFE (Reinforced)

Size Dimensions3/4". x 3/4".

System UseLead Free*

Turns OperationsQuarter-Turn

Type Of ValveBall Valve

Valve Ball MaterialStainless Steel

Valve Ball OperatorCS Standard Lever Handle

Valve Ball Port StyleFull Port

Valve End Connection TypeS-HC -- Female Solder Cup x Hose Cap and Chain

Valve Pressure Rating Cwp600 PSI/41.4 Bar CWP

Valve Stem MaterialStainless Steel

Valve Trim PackageStainless Steel Trim

Weight1.11 lbs.

Width3.16"

Shipping Dimensions (L x W x H)9.5" x 3.25" x 4.06"

Features & Benefits

Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
Full port
Silicon Performance Bronze body
Stainless steel ball and stem
Blowout-proof stem
NIBCO HydraPure lead-free* markings on handle and body
Standard lever handle, other handle options available
Solder end connections
Dezincification resistant
Lead-free
Conforms to MSS SP-110
NSF/ANSI/CAN-372
NSF/ANSI/CAN-61
IAPMO/ANSI Z1157

Documents

T-S-585-66-LF-HC-Spec-Sheet.pdf

Marketing Information

The NIBCO bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features solder ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, residential, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125 Percent limited warranty.
