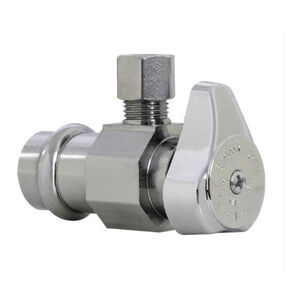

BrassCraft® G2CPN19X CPEF Angle Stop, 1/2 x 3/8 in Nominal, Press x Compression, Quarter-Turn Actuator, 125 psi
BrassCraft® G2CPN19X CPEF Angle Stop, 1/2 x 3/8 in Nominal, Press x Compression, Quarter-Turn Actuator, 125 psi
BrassCraft® Angle Stop, G2 Series, 1/2 x 3/8 in Nominal, Connection Type: Press x Compression, 125 psi, Number of Ports/Ways: 2, Material Standard: ASME A112.18.1, CSA B125.1, NSF/ANSI 372, NSF/ANSI/CAN 61, ASTM B88, Brass/Steel Trim, Glass-Filled Polypropylene/Rubber Softgoods, Brass Body, ABS Handle, Quarter-Turn Actuator, Chrome-Plated, 40 to 180 deg F, 1.58 x 2.28 x 1.07 in, Domestic/Import: Domestic, For Use With: Potable Water Distribution Systems
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$30.08 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBrassCraft®
Actuator TypeQuarter-Turn
Body MaterialBrass
Color/FinishChrome-Plated
Connection TypePress x Compression
Dimensions1.58 x 2.28 x 1.07
Domestic/ImportDomestic
FinishChrome-Plated
Handle MaterialABS
IndustryPlumbing
Material StandardASME A112.18.1, CSA B125.1, NSF/ANSI 372, NSF/ANSI/CAN 61, ASTM B88
Nominal Size1/2 x 3/8
Number of Ports/Ways2
Pressure Rating125
SeriesG2 Series
Softgoods MaterialGlass-Filled Polypropylene/Rubber
Suitable For Use WithPotable Water Distribution Systems
Temperature Rating40 to 180
Trim MaterialBrass/Steel
Additional Information
ASME A112.18.1/CSA B125.1|cUPC Listed|IAPMO Listed
Features & Benefits
- Machined one-piece brass body provides strength, durability and long-lasting performance Compatible with copper pipe (ASTM B88 tubing) Safe installation without the need for heat or flame 1/4 handle provides easy on/off flow control with a 90 degree turn of the handle One-piece shut-off mechanism provides smooth on-off operation Easy-to-remove handle protects against accidental operation during rough-ins Connection capability on both wet and dry systems Chrome plated finish 100% leak tested to ensure reliable, leak-free performance Temperature rating: 40deg to 160degF Pressure rating: 125 psi maximum Product certified by IAPMO to ASME ASME A112.18.1/CSA B125.1
Documents
Marketing Information
Get the job done right with BrassCraft press connect water stops. With installation capability on both wet and dry pipe systems, our press connect water stops require no oils, fillings, adhesives or sealants during installation. The quarter-turn handle provides a smooth on-off operation and is easy-to-remove, protecting against accidental operation during rough-ins. 100% leak-tested for reliable performance.
BrassCraft® G2CPN19X CPEF Angle Stop, 1/2 x 3/8 in Nominal, Press x Compression, Quarter-Turn Actuator, 125 psi
BrandBrassCraft®
MFG #G2CPN19X C1
Keller #1415798
My Part ##
Last Ordered#
$30.08 / ea
