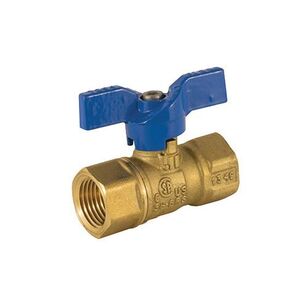

Jomar Valve® The Original Blue Cap™ 101-402 Gas Ball Valve, 3/8 in, FIP, Brass, 600 psi
Jomar Valve® The Original Blue Cap™ 101-402 Gas Ball Valve, 3/8 in, FIP, Brass, 600 psi
Jomar Valve® The Original Blue Cap™ Gas Ball Valve, 3/8 in Nominal, FIP Connection, 600 psi, T-Handle Actuator, 0.47 in Opening, Brass Body, PTFE Seat, Brass Stem, Viton Seal, Brass Trim, Aluminum Handle, Buna-N/FKM/PTFE Softgoods, -40 to 500 deg F, 1.85 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$22.90 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandJomar Valve®
Actuator TypeT-Handle
Body MaterialBrass
Connection TypeFIP
Dimensions1.85 " L
Handle MaterialAluminum
Nominal Size3/8
Opening Size0.47
Pressure Rating600
Seal MaterialViton
Seat MaterialPTFE
Softgoods MaterialBuna-N/FKM/PTFE
Stem MaterialBrass
Temperature Rating-40 to 500
Trim MaterialBrass
Additional Information
ANSI B1.20.1|ASTM CW617N, CW614N|cUL/US Listed|C/US CSA Certified|MSS SP-110
Features & Benefits
- Valve can be locked in the closed position by reversing the handle (2) viton O-rings 100% leak tested 100% made in Italy Leak-proof stem, lifetime warranty Brass end connection, geomet-plated steel handle screw
Jomar Valve® The Original Blue Cap™ 101-402 Gas Ball Valve, 3/8 in, FIP, Brass, 600 psi
BrandJomar Valve®
MFG #101-402
Keller #1418774
My Part ##
Last Ordered#
$22.90 / ea
