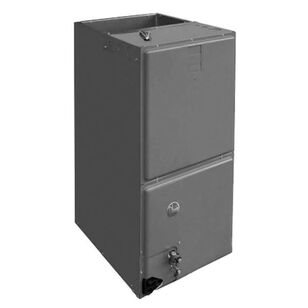

Rheem® Endeavor® Line RH2TY4824STANNA Multi-Poise Air Handler, 4 ton, 48000 Btu/hr BTU, 115 V, 6.5 A, 14.07 kW, 3/4 hp
Rheem® Endeavor® Line RH2TY4824STANNA Multi-Poise Air Handler, 4 ton, 48000 Btu/hr BTU, 115 V, 6.5 A, 14.07 kW, 3/4 hp
Rheem® Multi-Poise Air Handler, RH2TY Model, 4 ton Nominal Capacity, 48000 Btu/hr BTU Rating, 115 V Voltage Rating, 6.5 A Amperage Rating, 14.07 kW Wattage, 3/4 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 300 to 1100 rpm Rotational Speed, Downflow, Horizontal Left, Horizontal Right, Upflow Configuration, 13.4 to 16 SEER Rating, R-454B Refrigerant Type, 1050 to 1400 cfm Flow Rate, 15 A Fuse Rating, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 25 x 20 in Filter Size, 2 Number of Stages, 4 Number of Speeds, Constant Torque Motor Type, Aluminum, 55-1/2 in H x 24-1/2 in W x 21-11/16 in D Dimensions, Standard Efficiency, TXV Metering Device, Non-Communicating Control Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,344.69 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationStandard Efficiency, TXV Metering Device, Non-Communicating Control
Amperage Rating6.5
BTU Rating48000
ConfigurationDownflow, Horizontal Left, Horizontal Right, Upflow
Dimensions55-1/2 " H x 24-1/2 " W x 21-11/16 " D
Filter Size25 x 20
Flow Rate1050 to 1400
Frequency Rating60
Fuse Rating15
HP Rating3/4
Liquid Line Size3/8
MaterialAluminum
ModelRH2TY
Motor TypeConstant Torque
Nominal Capacity4
Number of Speeds4
Number of Stages2
Phase1
Refrigerant TypeR-454B
Rotational Speed300 to 1100
SEER Rating13.4 to 16
Suction Line Size7/8
Voltage Rating115
Wattage14.07
Additional Information
AHRI Certified|ASHRAE Standard 193|cULus Listed
Features & Benefits
- Quiet Operation: Provided by a cabinet construction with 1.0 inch of foil faced insulation for quieter sound characteristics Aluminum Indoor Coil Design: Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant Versatile 4-Way Convertible Compact Design: Allow for upflow, downflow, horizontal left and horizontal right applications even in the smallest of spaces Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility Field Installed Auxiliary Heater Kits: Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with ASHRAE Standard 193 Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78% lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
