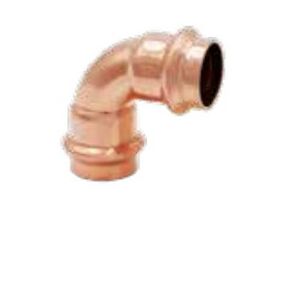

Legend Valve LegendPress® 450-085P 90 deg Short Radius Elbow, 1 in Press x 1 in Press, Copper
Legend Valve LegendPress® 450-085P 90 deg Short Radius Elbow, 1 in Press x 1 in Press, Copper
Legend Valve LegendPress® 90 deg Short Radius Elbow, 90 deg Elbow Fitting, 1 in Connection Size 1, Press Connection Type 1, 1 in Connection Size 2, Press Connection Type 2, Press|Press Connection Type, Copper, Wrot Copper Material Construction, For Use With: ASTM B88 Type K, L and M Hard-Drawn Copper Tubing, Dimension Standards: ANSI/ASME B16.51, 200 psi, 0 to 250 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$25.32 / ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Connection Size 11
Connection Size 21
Connection TypePress|Press
Connection Type 1Press
Connection Type 2Press
Dimension StandardsANSI/ASME B16.51
Fitting Type90 deg Elbow
For use with:ASTM B88 Type K, L and M Hard-Drawn Copper Tubing
MaterialCopper
Material ConstructionWrot Copper
Pressure Rating200
Temperature Rating0 to 250
Additional Information
ASTM B152 Alloy C11000|ASTM B75 Alloy C12200|IAPMO PS-117|National Plumbing Code of Canada|NSF/ANSI 372|NSF/ANSI 61|UPC Certified
Documents
Marketing Information
Press-type end connections eliminate the need for soldering, reducing labor and material costs and eliminating the fire hazard associated with the process. Press to connect connections are designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing. Coiled (annealed) soft copper tubing is not recommended but can be used if the ends are made round. Fittings in nominal sizes 1/2 to 4 in feature molded recess O-rings which, when un-pressed, create leak paths at multiple points during the pressure test to identify an un-pressed joint quickly.
Legend Valve LegendPress® 450-085P 90 deg Short Radius Elbow, 1 in Press x 1 in Press, Copper
BrandLegend Valve
MFG #450-085P
Keller #1421410
My Part ##
Last Ordered#
$25.32 / ea
