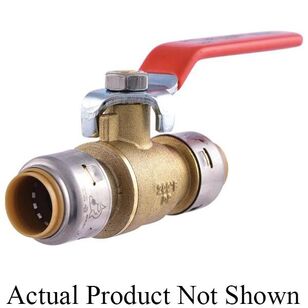

SharkBite™ SharkBite Max™ UR22223 Ball Valve, 1 in, Push-to-Connect, Brass, 250 psi
SharkBite™ SharkBite Max™ UR22223 Ball Valve, 1 in, Push-to-Connect, Brass, 250 psi
SharkBite™ Ball Valve, 1 in Nominal, Push-to-Connect Connection Type, 250 psi, Media: Water, Handle Operator, Brass Body, PTFE Seal, Steel Handle, Brass Ball, EPDM/PTFE Softgoods, Lead-Free/Contains Lead: Lead-Free, 200 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$58.30 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
Ball MaterialBrass
Body MaterialBrass
Connection TypePush-to-Connect
Handle MaterialSteel
MediaWater
Nominal Size1
Operator TypeHandle
Pressure Rating250
Seal MaterialPTFE
Softgoods MaterialEPDM/PTFE
Temperature Rating200
Shipping Dimensions (L x W x H)24" x 17.5" x 8.5"
Additional Information
ASME A112.4.14/CSA B125.14|NSF/ANSI 14|NSF/ANSI/CAN 61/372
Features & Benefits
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe* Half the insertion effort, double the burst pressure** Can be installed on wet lines and pressure tested immediately Stainless steel retainer adds strength and durability High-performance DZR lead-free brass body No special tools, crimping, soldering or glue required Can be rotated after installation No tube liner required for PEX Rated to 200degF and 250 psi 2-year warranty when properly installed Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool *SharkBite push-to-connect fittings are the fastest when compared to other conventional plumbing methods **Comparison relates to 1st generation SharkBite push-to-connect products
Documents
Marketing Information
SharkBite Max ball valves' innovative push-to-connect design makes for quick and easy installation when needing to install a new or replacement ball valve. Compatible with PEX, copper, CPVC and PE-RT pipe in any combination without a need for soldering, clamps, glue or unions. The valve can be installed where water shut off is needed and rotated after install for easier installation in tight spaces.
