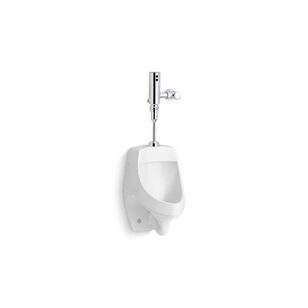

Kohler® Dexter™ PR5016-T2H-NA High-Efficiency Urinal, 0.5 gpf Flush Rate, Top Spud Location, Wall Mounting
Kohler® Dexter™ PR5016-T2H-NA High-Efficiency Urinal, 0.5 gpf Flush Rate, Top Spud Location, Wall Mounting
Kohler® High-Efficiency Urinal, Dexter™ Collection, 0.5 gpf Flush Rate, Washdown Flushing System, Top Spud Location, 3/4 in Inlet Spud, 25 to 80 psi Working Pressure, Wall Mounting, Vitreous China, 14-1/2 in Length, 13-5/8 in Width, 20-3/8 in Height, Additional Information: Brass Flush Valve with Polished Chrome Finish
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,188.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandKohler®
Additional InformationBrass Flush Valve with Polished Chrome Finish
CollectionDexter
Flush Rate0.5
Flushing SystemWashdown
Height20-3/8
Inlet Spud Size3/4
Length14-1/2
MaterialVitreous China
Mounting TypeWall
Spud LocationTop
Width13-5/8
Working Pressure25 to 80
Additional Information
ADA Compliant|ASME A112.18.1/A112.19.2/A112.1037|ASSE 1037|CEC Compliant|CSA B125.1/B45.1/B125.37|EPA WaterSense Certified|ICC/ANSI A117.1
Features & Benefits
- Fixture and touchless flushometer combination is engineered for optimal performance Washout urinal Includes anti-backsplash wall 0.5 gpf (1.9 lpf) 3/4" (19 mm) top spud Flush valve activation distance is factory-set No external flush volume adjustment ensures water conservation 24-hour automatic sentinel flush keeps trapway fresh Mechanical override enables flushometer to be used manually even during a power outage Chloramine and chlorine resistance on all rubber components exposed to waterway Locking stop cap provides protection against vandalism 125-micron filter protects internal components High back pressure vacuum breaker Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day Electronic infrared sensor with Tripoint® technology for accurate activation
Marketing Information
The straightforward design of the Dexter urinal brings KOHLER styling and functionality to any application. Equipped with a washout flush system and paired with a 0.5 gpf Mach Tripoint touchless flushometer, the Dexter urinal combines water savings with a compact wall print perfect for smaller commercial bathrooms. This Dexter urinal is ideal for customers who want to conserve water but do not want a waterless urinal.
