M-VCO HP1LSS4212-6IN LEVER OPER
M-VCO HP1LSS4212-6IN LEVER OPER

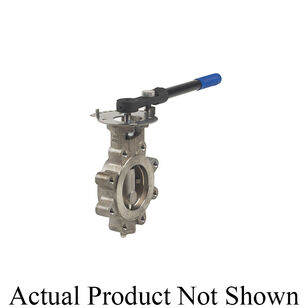

Milwaukee Valve Butterfly Valve, Lug Style, Series: HP Series, 6 in Nominal, Flanged End Style, 150 lb Pressure Class, Lever-Lock Handle Actuator, Stainless Steel Body, 316 Stainless Steel Disc, 17-4PH Stainless Steel (Stem)/18-8 Stainless Steel (Taper Pin) Stem & Pin, PTFE Softgoods, Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$12,073.39Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandMilwaukee Valve
Actuator TypeLever-Lock Handle
Body MaterialStainless Steel
Disc Material316 Stainless Steel
Domestic/ImportImport
End StyleFlanged
Nominal Size6"
Pressure Class150 lbs.
SeriesHP Series
Softgoods MaterialPTFE
Stem & Pin Material17-4PH Stainless Steel (Stem)/18-8 Stainless Steel (Taper Pin)
TypeLug Style
Additional Information
API 598/609B|ASME/ANSI B16.34/B16.5|ASTM A351 Body|ASTM CF8M Disc|MSS-SP-25/MSS-SP-55/MSS-SP-61/MSS-SP-68 Compliant|PROP65: Cancer and Reproductive Harm California Transparency in Supply Chains Act of 2010
Features & Benefits
- Double offset geometry to provide superior sealing with minimal seat contact and wear Machined, tapered seat provides multiple sealing edges One - piece shaft and disc designed for maximum strength and Cv Internally cast disc position stop to prevent disc over travel while maintaining optimum disc/seat contact Stem is centered in the adjustable stem packing by oversized bearings eliminating stem leakage and fugitive emissions Disc spacers to center disc in seat to eliminate seat distortion Blow-out proof stem prevents injury and product loss Combination mechanical and pressure energized seat design for repeatable and reliable sealing performance and extended cycle life Sealing retaining ring designed for double dead end service (lug style) and allows easy removal for seat replacement Stem/disc connection ensures minimal lost motion and high strength Stainless backed RTFE bearing Valve is rated at 150 psi steam for on and off application and 50 psi modulating service Limit range 30 to 70 deg F, no dwell in near closed position 275 psi CWP pressure PTFE stem packing
M-VCO HP1LSS4212-6IN LEVER OPER
BrandMilwaukee Valve
MFG #HP1LSS4212 060
Keller #1425922
My Part ##
Last Ordered#
$12,073.39Â /Â ea
