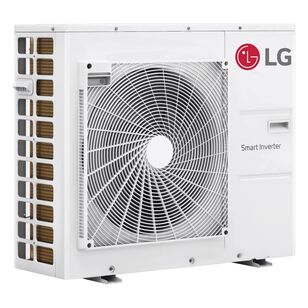

LG HVAC Multi F Series KUMXB241A Heat Pump Outdoor Unit, 208-230 V, 16.5 A, 24000 Btu/hr Cooling, 24600 Btu/hr Heating
LG HVAC Multi F Series KUMXB241A Heat Pump Outdoor Unit, 208-230 V, 16.5 A, 24000 Btu/hr Cooling, 24600 Btu/hr Heating
LG HVAC Heat Pump Outdoor Unit, Multi F Series, 208-230 V, 16.5 A, 1.92 kW Cooling, 1.716 kW Heating, 60 Hz, 1 ph, 24600 Btu/hr Heating, 24000 Btu/hr Cooling, Inverter Driven Twin Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 20 A Fuse Rating, 14 FPI Coil, Direct Drive, Tonnage: 2 ton, 54 dBA Heating Sound Level, 50 dBA Cooling Sound Level, Concealed Mounting, Steel, Galvanized, RAL 7044 Munsell 2.5Y 7.5/1, -4 to 64 deg F Heating Operating Temperature, 14 to 118 deg F Cooling Operating Temperature, 34-1/4 in Overall Length, 13 in Overall Width, 25-19/32 in Overall Height, Additional Information: Multi-Zone, 1766 cfm Maximum Air Flow
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,250.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLG
Additional InformationMulti-Zone, 1766 cfm Maximum Air Flow
Amperage Rating16.5
Coil Rating14
ColorRAL 7044 Munsell 2.5Y 7.5/1
Compressor TypeInverter Driven Twin Rotary
Cooling BTU Rating24000
Cooling Operating Temperature14 to 118
Cooling Sound Level50
Drive TypeDirect
FinishGalvanized
Frequency Rating60
Fuse Rating20
Heating BTU Rating24600
Heating Operating Temperature-4 to 64
Heating Sound Level54
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Mounting TypeConcealed
Overall Height25-19/32
Overall Length34-1/4
Overall Width13
Phase1
Power Rating1.92 kW Cooling, 1.716 kW Heating
Refrigerant TypeR-32
SeriesMulti F Series
Suction Line Size3/8
Tonnage2
Voltage Rating208-230
Additional Information
AHRI 210/240|cCSAus Certified|ENERGY STAR Certified
Features & Benefits
- Auto operation / Auto restart Inverter (variable speed compressor) Integrated central control connection Defrost / Deicing Restart delay (three [3] minutes) Self diagnosis Soft start Low ambient cooling down to 14 deg F (-4 deg F with Wind Baffle Kit)
