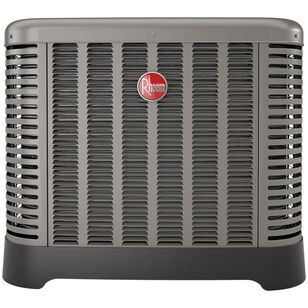

Rheem® Endeavor™ K-Series™ KGB RA13NY36AC1NA Air Conditioner Condenser, 36000 Btu/hr, 17100 to 55500 Btu/hr Cooling
Rheem® Endeavor™ K-Series™ KGB RA13NY36AC1NA Air Conditioner Condenser, 36000 Btu/hr, 17100 to 55500 Btu/hr Cooling
Rheem® Air Conditioner Condenser, Line Achiever ® Series, 36000 Btu/hr Nominal Capacity, 17100 to 55500 Btu/hr Cooling Capacity, 460 V Voltage Rating, 22 A Amperage Rating, 188 W Wattage, 1/6 hp Rating, 825 rpm Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 2760 cfm Rating, 9 EER Rating, 13.4 SEER Rating, 1 Number of Stages, R-454B Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 71 dBA Sound Level, 35 A Fuse Rating, 13.3 sq-ft Face Area, 24 FPI Fins per Inch, Copper, 33-3/4 in L x 33-3/4 in W x 25 in H Dimensions, 3 ton Tonnage Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,385.88 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information3 t Tonnage
Amperage Rating22
CFM Rating2760
Compressor TypeScroll
Cooling Capacity17100 to 55500
Dimensions33-3/4 " L x 33-3/4 " W x 25 " H
EER Rating9
Face Area13.3
Fins per Inch24
Frequency Rating60
Fuse Rating35
HP Rating1/6
Liquid Line Size3/8
MaterialCopper
Nominal Capacity36000
Number of Stages1
Phase3
Refrigerant TypeR-454B
Rotational Speed825
SEER Rating13.4
SeriesLine Achiever Series
Sound Level71
Suction Line Size3/4
Voltage Rating460
Wattage188
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- Peace-Of-Mind Performance: Relax, you're covered by one of the best warranties in the industry-10 Year Conditional Parts Less Environmental Impact: The 7mm condenser coil provides a decrease in refrigerant requirements up to 15%, lowering the amount of greenhouse gases emitted while contributing to Rheem's sustainability goal of a 50% reduction in our greenhouse gas footprint by 2025, A win for all of us Durable Curb Appeal: Curved louvered panels and rugged corner posts provide excellent protection to internal components, while modern cabinet aesthetics including the corrosion-resistant composite base pan and powder coat paint system allow your unit to put its best face forward for years to come Quiet Operation: Efficient home comfort shouldn't be noisy, that's why our air conditioners are engineered with acoustics in mind Integrated sound-dampening features such as refrigerant tubing design, fan blade approach, composite base pan and innovative compressor and drive technologies let you enjoy more efficiency-and less noise
Rheem® Endeavor™ K-Series™ KGB RA13NY36AC1NA Air Conditioner Condenser, 36000 Btu/hr, 17100 to 55500 Btu/hr Cooling
BrandRheem®
MFG #RA13NY36AC1NA
Keller #1428339
