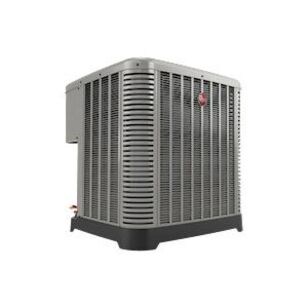

Rheem® WG Series RA14AY48AC1NA Air Conditioner, 4 ton, 45500 Btu/hr Cooling, 208/230 V, 48000 Btu/hr
Rheem® WG Series RA14AY48AC1NA Air Conditioner, 4 ton, 45500 Btu/hr Cooling, 208/230 V, 48000 Btu/hr
Rheem® Air Conditioner, Endeavor® Line Achiever® Series, 4 ton Nominal Capacity, 45500 Btu/hr Cooling Capacity, 48000 Btu/hr BTU Rating, 208/230 V Voltage Rating, 12 A Amperage Rating, 251 W Wattage, 1/5 hp Rating, 850 rpm Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 3606 cfm Rating, 12 EER Rating, 15.2 SEER Rating, 1 Number of Stages, R-454B Refrigerant Type, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 74 dB Sound Level, 25 A Fuse Rating, 19.5 sq-ft Face Area, 24 Fins per Inch, 35 in H x 33-3/4 in W x 33-3/4 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$10,164.21 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating12
BTU Rating48000
CFM Rating3606
Compressor TypeScroll
Cooling Capacity45500
Dimensions35 " H x 33-3/4 " W x 33-3/4 " D
EER Rating12
Face Area19.5
Fins per Inch24
Frequency Rating60
Fuse Rating25
HP Rating1/5
Liquid Line Size3/8
Nominal Capacity4
Number of Stages1
Phase3
Refrigerant TypeR-454B
Rotational Speed850
SEER Rating15.2
SeriesEndeavor Line Achiever Series
Sound Level74
Suction Line Size7/8
Voltage Rating208/230
Wattage251
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- 7 mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability Swept Wing Fan Technology1: Features quieter operation and improved unit acoustics PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels - makes repairs easier and faster Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants - with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort PlusOne® Refrigerant Detection System™3: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
Rheem® WG Series RA14AY48AC1NA Air Conditioner, 4 ton, 45500 Btu/hr Cooling, 208/230 V, 48000 Btu/hr
BrandRheem®
MFG #RA14AY48AC1NA
Keller #1428374
My Part ##
Last Ordered#
$10,164.21 / ea
