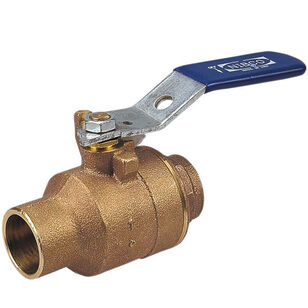

NIBCO S585-70-1/4 BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO S585-70-1/4 BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO® 2-Piece Ball Valve, S-585-70 Series, 1/4 in Nominal, Female Solder Cup Connection, Full Port, 600 psi, LP Gas, Natural Gas, Steam, Water Media, 1-3/4 in Inlet to Outlet Length, 1-3/4 in Top to Inlet Center, 0.38 in Opening, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B371/B584, Bronze Body, RPTFE Seat, Silicon Bronze Alloy Stem, RPTFE Seal, Bronze Trim, PTFE Packing, Steel Handle, Bronze Ball, 400 deg F, 4-3/4 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$62.11 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBronze
Body MaterialBronze
Connection TypeFemale Solder Cup
Dimensions4-3/4 " L
Domestic/ImportDomestic
Handle MaterialSteel
Inlet to Outlet Length1-3/4
Material StandardASTM B371/B584
MediaLP Gas, Natural Gas, Steam, Water
Nominal Size1/4
Opening Size0.38
Operator TypeQuarter-Turn Lever Handle
Packing MaterialPTFE
Port TypeFull
Pressure Rating600
Seal MaterialRPTFE
Seat MaterialRPTFE
SeriesS-585-70 Series
Stem MaterialSilicon Bronze Alloy
Temperature Rating400
Top to Inlet Center1-3/4
Trim MaterialBronze
Warranty5 Year Limited
Shipping Dimensions (L x W x H)13.88" x 45.2" x 14.63"
Additional Information
MSS SP 110
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Blowout-proof stem Dezincification-resistant
Documents
Marketing Information
The NIBCO® bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® ball valves are backed by the NIBCO® Inc. 5 years 125% limited warranty.
