• Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance Inlet/outlet gauge ports, gauge not included Lead free tubing and fittings Globe body pattern with threaded end connections Low-flow bypass range 20-175 psi

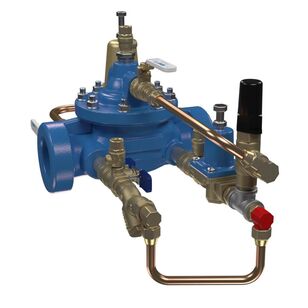

This 1 1/4 inch ACV is armed with ArmorTek, a patented 3-part advanced epoxy coating system designed to limit both microbial induced and exposed metal substrate corrosion. This pressure reducing control valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits the possibility of damaging high inlet pressure from passing through the valve to downstream piping. This Classic valve style has a globe body pattern with threaded end connections, configured with inlet and outlet gauge ports. Flow requirements below the normal range of the main line valve are handled by a separate, low flow by-pass valve with 20-175 psi adjustment range
