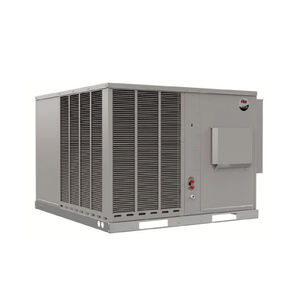

RUUD® Endeavor® Line Ovation Series RGEAYB036AJT101NAAJA Residential Packaged Gas Electric Unit, 100000 Btu/hr Input
RUUD® Endeavor® Line Ovation Series RGEAYB036AJT101NAAJA Residential Packaged Gas Electric Unit, 100000 Btu/hr Input
RUUD® Residential Packaged Gas Electric Unit, Achiever Series, 100000 Btu/hr Input BTU Rating, 81000 Btu/hr Output BTU Rating, 208 to 230 V Voltage Rating, 3 A Amperage Rating, 10.55 kW Wattage, 1 hp Rating, 825 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 3250 cfm Rating, 10.6 EER Rating, 13.4 SEER Rating, 81 AFUE Rating, 2 to 5 ton Tonnage, 5 Number of Burners, 1 Number of Stages, R-454B Refrigerant Type, 75 dB Decibel Rating, Direct Spark Ignition Type, Direct Drive Type, 1/2 in Connection, Connection Type: Pipe, 3/4 in NPT Drain Connection, 24 x 24 x 1 in Filter Size, Aluminum, 45 to 75 deg F Temperature Rating, 50-13/16 in H x 41-9/16 in W x 45-1/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$18,461.40 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating81
Amperage Rating3
CFM Rating3250
Compressor TypeScroll
Connection Size1/2
Connection TypePipe
Decibel Rating75
Dimensions50-13/16 " H x 41-9/16 " W x 45-1/16 " D
Drain Connection3/4 " NPT
Drive TypeDirect
EER Rating10.6
Filter Size24 x 24 x 1
Frequency Rating60
HP Rating1
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating100000
MaterialAluminum
Number of Burners5
Number of Stages1
Output BTU Rating81000
Phase1
Refrigerant TypeR-454B
Rotational Speed825
SEER Rating13.4
SeriesACHIEVER Series
Temperature Rating45 to 75
Tonnage2 to 5
Voltage Rating208 to 230
Wattage10.55
Additional Information
AHRI Certified|cULus Listed|ISO 9001:2015
Features & Benefits
- Scroll Compressors on all models: Provides maximum efficiency and quiet operation. MicroChannel Evaporator and Condenser Coil: Delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. All aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. It is easier to clean and has a more robust surface. Thermal Expansion Valves: Standard on all models for precise superheat control reliability and energy efficiency at all operating conditions. High Pressure Control: Standard on all models for refrigerant component protection and reliability. Filter Drier: Standard on all models. 100% Factory Run Tested. Stainless Steel Heat Exchanger Option: Available factoryinstalled for better corrosion resistance. This is standard on all ULN models. PlusOne® Ignition System: Proven Direct Spark Ignition System (DSI) for reliability and longevity. PlusOne® Refrigerant Detection System™1: An integrated one-box patented design featuring the A2L sensor and mitigation board offering easier commissioning with a single component and simplified wiring configuration compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected. Rugged Base Rail: For improved installation and handling. Easily Accessible Control Box Furnace Compartment and Slide-Out Blower Section: Allows for installability and serviceability. Side and Down Discharge Options Available: All models are shipped ready for horizontal applications. Double Sloped Evaporator Coil Drain Pan: Allows for complete water removal from the unit - contributing to improved indoor air quality. Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes. Supply and Return Air Openings: Feature a one-inch-tall flange to prevent water migration into the ductwork. Designing for Sustainability with Low GWP: For 2025 the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants with only minimal changes to system installation. For us this is another step toward our continued sustain - ability goal of reducing greenhouse gas emissions while still delivering an exceptional level if energy efficient dependable comfort.
RUUD® Endeavor® Line Ovation Series RGEAYB036AJT101NAAJA Residential Packaged Gas Electric Unit, 100000 Btu/hr Input
BrandRheem®
MFG #RGEAYB036AJT101NAAJA
Keller #1433051
My Part ##
Last Ordered#
$18,461.40 / ea
