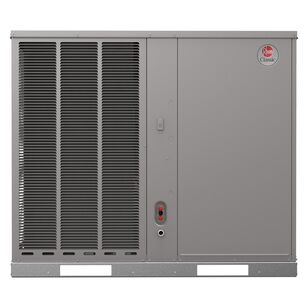

Rheem® Endeavor® Line RHPAYB030ACT101NA Packaged Heat Pump, 27400 Btu/hr Heating, 30000 Btu/hr Cooling, 10 kW, 208/230 V
Rheem® Endeavor® Line RHPAYB030ACT101NA Packaged Heat Pump, 27400 Btu/hr Heating, 30000 Btu/hr Cooling, 10 kW, 208/230 V
Rheem® Packaged Heat Pump, Classic® Series, RHPAYB Model, 30000 Btu/hr Cooling BTU Rating, 27400 Btu/hr Heating BTU Rating, 208/230 V Voltage Rating, 16 A Amperage Rating, 10 kW Wattage, 1/3 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1050 rpm Rotational Speed, Scroll Compressor Type, 1000 cfm Rating, 13.4 SEER Rating, 6.7 HSPF Rating, 10.6 EER Rating, 3/4 in Connection, R-454B Refrigerant Type, 1 Number of Stages, 20 A Fuse Rating, 77 dBA Sound Level, Direct Drive Type, 4.3 sq-ft Face Area, 1-Row Coil Rating, 20 FPI Fins per Inch, 24 x 24 x 1 in Filter Size, 41 in H x 47-1/2 in W x 50-11/16 in D Dimensions, Constant Torque Drive, Standard Efficiency Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$18,864.88 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationConstant Torque Drive, Standard Efficiency
Amperage Rating16
CFM Rating1000
Coil Rating4.3 sq-' Face Area, 1-Row
Compressor TypeScroll
Connection Size3/4
Cooling BTU Rating30000
Dimensions41 " H x 47-1/2 " W x 50-11/16 " D
Drive TypeDirect
EER Rating10.6
Filter Size24 x 24 x 1
Fins per Inch20
Frequency Rating60
Fuse Rating20
Heating BTU Rating27400
HP Rating1/3
HSPF Rating6.7
ModelRHPAYB
Number of Stages1
Phase1
Refrigerant TypeR-454B
Rotational Speed1050
SEER Rating13.4
SeriesClassic Series
Sound Level77
Voltage Rating208/230
Wattage10
Features & Benefits
- Scroll Compressors on all Models: Provides maximum efficiency and quiet operation MicroChannel Evaporator and Condenser Coil: Delivers superior performance with a robust surface, a decreased refrigerant requirement and is lighter than conventional copper tube/aluminum fin coils. All-aluminum construction offers superior protection against formicary corrosion and aluminum tube rubbing damage. The design allows for easier and faster cleaning Two Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions High and Low Pressure Control: Standard on all models for refrigerant component protection and reliability Filter drier: Standard on all models 100% factory run tested PlusOne® Refrigerant Detection System™: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected Rugged Base Rail: Contributes to improved installation and handling Easily Accessible Control Box and Slide-Out Blower Section: Allows for faster installability and serviceability Side and Down Discharge Options Available: All models are shipped ready for horizontal applications but can be adjusted depending on installation requirements Double Sloped Evaporator Coil Drain Pan: Allows for complete water removal from the unit-contributing to improved indoor air quality Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes Supply and Return Air Openings: Feature a one-inch-tall flange to prevent water migration into the ductwork Supplemental Electric Heating Option Available: Factory and field installed, electrical heat strips, up to 15 kW with simplified single-point wiring, are available for periods of extreme weather conditions Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%1 lower GWP than previous-generation refrigerants with only minimal changes to system installation. For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
Documents
Rheem® Endeavor® Line RHPAYB030ACT101NA Packaged Heat Pump, 27400 Btu/hr Heating, 30000 Btu/hr Cooling, 10 kW, 208/230 V
BrandRheem®
MFG #RHPAYB030ACT101NA
Keller #1433057
My Part ##
Last Ordered#
$18,864.88 / ea
