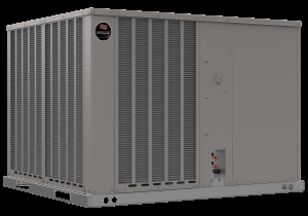

RUUD® Endeavor™ RHPXYC036AJT000NA Packaged Heat Pump, 3 ton Nominal, 34200 Btu/hr Heating, 36000 Btu/hr Cooling, 24 A
RUUD® Endeavor™ RHPXYC036AJT000NA Packaged Heat Pump, 3 ton Nominal, 34200 Btu/hr Heating, 36000 Btu/hr Cooling, 24 A
RUUD® Packaged Heat Pump, Line Achiever® Plus Series, 3 ton Nominal Capacity, 36000 Btu/hr Cooling BTU Rating, 34200 Btu/hr Heating BTU Rating, 208/230 V Voltage Rating, 24 A Amperage Rating, 1/2 hp Indoor, 1/3 hp Outdoor HP Rating, 60 Hz Frequency Rating, 1 ph Phase, 1200 rpm Indoor, 825 rpm Outdoor Rotational Speed, Scroll Compressor Type, 1200 cfm, 1230 cfm Rating, 15.2 SEER Rating, 7.2 HSPF Rating, 11.5 EER Rating, Connection Type: NPT, 3/4 in Connection, R-454B Refrigerant Type, 2 Number of Stages, 35 A Fuse Rating, 78 dB Sound Level, Direct Drive Type, 7.6 sq-ft Area Indoor, 16.48 sq-ft Area Outdoor Coil Rating, 20 FPI Indoor, 16 FPI Outdoor Fins per Inch, 1 x 16 x 30 in Filter Size, Steel, Galvanized, 57-1/2 in L x 47-1/2 in W x 40-3/8 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$19,486.06 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating24
CFM Rating1200 cfm, 1230 cfm
Coil Rating7.6 sq-' Area Indoor, 16.48 sq-' Area Outdoor
Compressor TypeScroll
Connection Size3/4
Connection TypeNPT
Cooling BTU Rating36000
Dimensions57-1/2 " L x 47-1/2 " W x 40-3/8 " H
Drive TypeDirect
EER Rating11.5
Filter Size1 x 16 x 30
FinishGalvanized
Fins per Inch20 FPI Indoor, 16 FPI Outdoor
Frequency Rating60
Fuse Rating35
Heating BTU Rating34200
HP Rating1/2 hp Indoor, 1/3 hp Outdoor
HSPF Rating7.2
IndustryHVAC
MaterialSteel
Nominal Capacity3
Number of Stages2
Phase1
Refrigerant TypeR-454B
Rotational Speed1200 rpm Indoor, 825 rpm Outdoor
SEER Rating15.2
SeriesLine Achiever Plus Series
Sound Level78
Voltage Rating208/230
Additional Information
AHRI Certified|ENERGY STAR Certified|cULus Listed
Features & Benefits
- Relax, you're covered by one of the best warranties in the industry - 10 Year Conditional Parts in residential applications Households generate 72% of greenhouse gas emissions, so switching to a heat pump can make a big difference for the environment Two-stage operation (67% and 100%) works to meet your ever-changing heating and cooling needs The steel cabinet with a louvered coil guard provides excellent internal protection, while the overall modern cabinet aesthetics, including the powder coat paint system, allow your unit to put its best face forward for years to come The sloped drain pan ensures all water is removed from the unit, eliminating any bacterial growth and enhancing indoor air quality Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems This new requirement will result in a 78% lower GWP than previous-generation refrigerants - with only minimal changes to system installation For us, this is another step toward out continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
RUUD® Endeavor™ RHPXYC036AJT000NA Packaged Heat Pump, 3 ton Nominal, 34200 Btu/hr Heating, 36000 Btu/hr Cooling, 24 A
BrandRheem®
MFG #RHPXYC036AJT000NA
Keller #1433076
My Part ##
Last Ordered#
$19,486.06 / ea
