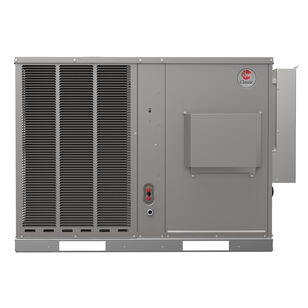

Rheem® Endeavor® Line Classic® Ovation Series RGEAYB042ACT101NAAJA Gas/Electric Packaged Unit, 100000 Btu/hr Input
Rheem® Endeavor® Line Classic® Ovation Series RGEAYB042ACT101NAAJA Gas/Electric Packaged Unit, 100000 Btu/hr Input
Rheem® Gas/Electric Packaged Unit, RGEAYB Series, 100000 Btu/hr Input BTU Rating, 42000 Btu/hr Output BTU Rating, 208/230 V Voltage Rating, 3.4 kW Wattage, 3/4 hp Rating, 1050 rpm Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 1400 cfm Rating, 10.6 EER Rating, 13.4 SEER Rating, 81 % AFUE Rating, 3.5 ton Tonnage, 5 Number of Burners, 1 Number of Stages, R-454B Refrigerant Type, 79 dBA Decibel Rating, Direct Spark Ignition Type, 12 x 9 in Blower Size, 1/2 in Connection, 3/4 in Drain Connection, (1) 1 x 24 x 24 in Filter Size, 82 % Steady State Efficiency, Stainless Steel, 25 to 41.7 deg C Temperature Rating, 41 in H x 47-1/2 in W x 52-7/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$20,187.12 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
Attributes
BrandRheem®
AFUE Rating81
Blower Size12 x 9
CFM Rating1400
Compressor TypeScroll
Connection Size1/2
Decibel Rating79
Dimensions41 " H x 47-1/2 " W x 52-7/16 " D
Drain Connection3/4
EER Rating10.6
Filter Size(1) 1 x 24 x 24
Frequency Rating60
HP Rating3/4
Ignition TypeDirect Spark
Input BTU Rating100000
MaterialStainless Steel
Number of Burners5
Number of Stages1
Output BTU Rating42000
Phase3
Refrigerant TypeR-454B
Rotational Speed1050
SEER Rating13.4
SeriesRGEAYB Series
Steady State Efficiency82
Temperature Rating25 to 41.7
Tonnage3.5
Voltage Rating208/230
Wattage3.4
Additional Information
AHRI Certified|cULus Listed
Features & Benefits
- Scroll Compressors on all models: Provides maximum efficiency and quiet operation MicroChannel Evaporator and Condenser Coil: Delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. All aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. It is easier to clean and has a more robust surface. Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions High Pressure Control: Standard on all models for refrigerant component protection and reliability Filter Drier: Standard on all models 100% Factory Run Tested Stainless Steel Heat Exchanger Option: Available factory installed for better corrosion resistance. This is standard on all ULN models PlusOne® Ignition System: Proven Direct Spark Ignition System (DSI) for reliability and longevity PlusOne® Refrigerant Detection System™1: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected Rugged Base Rail: For improved installation and handling Easily Accessible Control Box, Furnace Compartment and Slide-Out Blower Section: Allows for installability and serviceability Side and Down Discharge Options Available: All models are shipped ready for horizontal applications Double Sloped Evaporator Coil Drain Pan: Allows for complete water removal from the unit - contributing to improved indoor air quality Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes Supply and Return Air Openings: Feature a one-inch-tall flange to prevent water migration into the ductwork Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants with only minimal changes to system installation. For us, this is another step toward our continued sustain ability goal of reducing greenhouse gas emissions, while still delivering an exceptional level if energy efficient, dependable comfort
