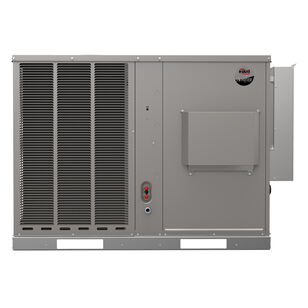

RUUD® Endeavor® Line RKPN, Classic Series RGEAYB048ACT101NA Packaged Gas Electric Unit, 100000 Btu/hr Heating Input
RUUD® Endeavor® Line RKPN, Classic Series RGEAYB048ACT101NA Packaged Gas Electric Unit, 100000 Btu/hr Heating Input
RUUD® Packaged Gas Electric Unit, Achiever® Series, RGEAYB Model, 100000 Btu/hr Heating Input BTU Rating, 81000 Btu/hr Heating Output BTU Rating, 208/230 V Voltage Rating, 27 A Amperage Rating, 1/3 hp Rating, 1050 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, 1-Stage Scroll Compressor Type, 1600 cfm Rating, 10.6 EER Rating, 13.4 SEER Rating, 81 % AFUE Rating, 2 Number of Stages, R-454B Refrigerant Type, 76 dB Decibel Rating, Direct Drive Type, 15.37 sq-ft Face Area Coil Rating, 1/2 in Connection, 24 x 24 x 1 in Filter Size, 35 A Fuse Rating, 41 in H x 47-1/2 in W x 50-13/16 in D Dimensions, 47900 Btu/hr Cooling Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$20,273.51 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information47900 Btu/hr Cooling
AFUE Rating81
Amperage Rating27
CFM Rating1600
Coil Rating15.37 sq-' Face Area
Compressor Type1-Stage Scroll
Connection Size1/2
Decibel Rating76
Dimensions41 " H x 47-1/2 " W x 50-13/16 " D
Drive TypeDirect
EER Rating10.6
Filter Size24 x 24 x 1
Frequency Rating60
Fuse Rating35
HP Rating1/3
IndustryHVAC
Input BTU Rating100000 Btu/hr Heating
ModelRGEAYB
Number of Stages2
Output BTU Rating81000 Btu/hr Heating
Phase1
Refrigerant TypeR-454B
Rotational Speed1050
SEER Rating13.4
SeriesACHIEVER Series
Voltage Rating208/230
Additional Information
AHRI Standard 210/240|cULus Listed
Features & Benefits
- Scroll Compressors on all models:Provides maximum efficiency and quiet operation MicroChannel Evaporator and Condenser Coil: Delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. All aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. It is easier to clean and has a more robust surface Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions High Pressure Control: Standard on all models for refrigerant component protection and reliability Filter Drier: Standard on all models 100% Factory Run Tested PlusOne® Ignition System: Proven Direct Spark Ignition System (DSI) for reliability and longevity PlusOne® Refrigerant Detection System™1: An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation – if excess refrigerant is detected Rugged Base Rail: For improved installation and handling Easily Accessible Control Box, Furnace Compartment and Blower Section with Slide-Out Blower Slide and Down Discharge Options Available: All models are shipped ready for horizontal applications Double Sloped Evaporator Coil Drain Pan: Assures all water is removed from the unit to improve indoor air quality Louvered Condenser Compartment: Protects the coil against yard hazards and/or weather extremes Supply and Return Air Openings: Feature a one-inch-tall flange to prevent water migration into the ductwork Designing for Sustainability with Low GWP: For 2025, the Environmental Protection Agency (EPA) has set a global warming potential (GWP) limit of 700 for refrigerant used in heating and cooling systems. This new requirement will result in a 78%2 lower GWP than previous-generation refrigerants with only minimal changes to system installation. For us, this is another step toward our continued sustain - ability goal of reducing greenhouse gas emissions, while still delivering an exceptional level if energy efficient, dependable comfort
