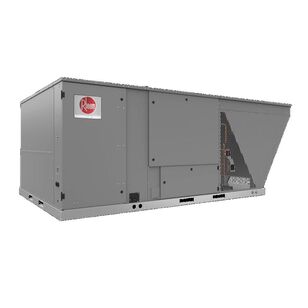

Rheem® Resolute™ Line Eclipse Series RHPHYB240ADF000DACA0A Packaged Heat Pump, 20 ton Nominal, 240000 Btu/hr Heating
Rheem® Resolute™ Line Eclipse Series RHPHYB240ADF000DACA0A Packaged Heat Pump, 20 ton Nominal, 240000 Btu/hr Heating
Rheem® Packaged Heat Pump, Classic® Series, RHPHYB Model, 20 ton Nominal Capacity, 240000 Btu/hr Cooling BTU Rating, 240000 Btu/hr Heating BTU Rating, 460 V Voltage Rating, 17.58 kW Wattage, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 8000 cfm Rating, 12.5 IEER Rating, 9.5 EER Rating, Downflow, Horizontal, Vertical Configuration, R-454B Refrigerant Type, 2 Number of Stages, 57-1/8 in H x 152-1/4 in W x 85-29/32 in D Dimensions, Large Commercial Cabinet, Standard Efficiency, ClearControl™ and Comfort Alert® Control, Hinged Access Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$86,036.61 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationLarge Commercial Cabinet, Standard Efficiency, ClearControl and Comfort Alert Control, Hinged Access
CFM Rating8000
Compressor TypeScroll
ConfigurationDownflow, Horizontal, Vertical
Cooling BTU Rating240000
Dimensions57-1/8 " H x 152-1/4 " W x 85-29/32 " D
EER Rating9.5
Frequency Rating60
Heating BTU Rating240000
IEER Rating12.5
ModelRHPHYB
Nominal Capacity20
Number of Stages2
Phase3
Refrigerant TypeR-454B
SeriesClassic Series
Voltage Rating460
Wattage17.58
Features & Benefits
- PlusOne® ServiceSmart Package including standard hinged access panels, slide-out drain pan with condensate overflow sensor, and qwik-slide blower assembly facilitates easier service and maintenance PlusOne® Diagnostics come standard through CoreCommand™ with easy-to-read and understand fault codes, history, and input/output options to meet building compliance needs Improved installability through factory-installed economizers and standard single-point wiring Optional ClearControl™ includes factory-installed Direct Digital Control (DDC) and sensors for easy connectivity through Modbus®, LonWorks®, or BACnet® Available power options: 208-230V / 3 phase / 60 Hz - 460V / 3 phase / 60 Hz - 575V / 3 phase / 60 Hz Limited Warranty (Commercial Applications): Parts - 1 Year - Compressor - 5 Years. Standard Heat Exchanger - 10 Years Stainless Steel Heat Exchanger - 20 Years. Additional extended warranty packages available through ProtectionPlus®. All units are factory run tested and shipped with R-454B refrigerant charge.
Marketing Information
Resolute units come factory charged, wired, and run-tested, with dual-stage compressors and field-convertible airflow options for reliable performance. Noteworthy features include a slide-out indoor fan assembly, single-point electrical connections, and a 2-inch slide-out filter for added service and routine maintenance convenience. Available in 15 and 20 tons, Resolute heat pumps are a great choice for a variety of commercial applications.
Rheem® Resolute™ Line Eclipse Series RHPHYB240ADF000DACA0A Packaged Heat Pump, 20 ton Nominal, 240000 Btu/hr Heating
BrandRheem®
MFG #RHPHYB240ADF000DACA0A
Keller #1433138
My Part ##
Last Ordered#
$86,036.61 / ea
