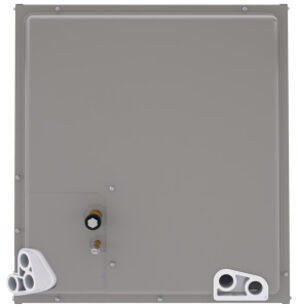

RUUD® Endeavor™ RCFY Series RCFY4821SEAAMC Line Cased Furnace Coil, 48000 Btu/hr BTU, NPT, Aluminum
RUUD® Endeavor™ RCFY Series RCFY4821SEAAMC Line Cased Furnace Coil, 48000 Btu/hr BTU, NPT, Aluminum
RUUD® Endeavor™ Line Cased Furnace Coil, RCFY Series, NPT Connection, 48000 Btu/hr, 600 to 1900 cfm, Gas, Oil Fuel, For Use With: Gas and Oil Furnaces, Aluminum, 34-1/2 in H x 21 in W x 19-7/8 in D, Additional Information: Standard Efficiency, EXV Metering Device, Multi-Poise Orientation, R-454B Refrigerant, 13 FPI, 3-Row, 7.6 sq-ft Face Area Coil Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,792.13 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationStandard Efficiency, EXV Metering Device, Multi-Poise Orientation, R-454B Refrigerant, 13 FPI, 3-Row, 7.6 sq-' Face Area Coil Rating
BTU Rating48000
CFM Rating600 to 1900
Connection TypeNPT
Dimensions34-1/2 " H x 21 " W x 19-7/8 " D
Fuel TypeGas, Oil
IndustryHVAC
MaterialAluminum
SeriesRCFY Series
Suitable For Use WithGas and Oil Furnaces
Additional Information
AHRI Certified
Features & Benefits
- Ruud® Indoor Furnace cased coils and replacement uncased coils are designed for use with Ruud outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow When matched with Ruud outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW] Constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection Chatleff metering device connections, at inlet and outlet of TXV or EEV and equalizer connections (TXV only) Approved for system application with variety of Rheem outdoor units Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material Compatible with Germicidal Light System (UV resistant) Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal N-Coil design maximizes performance and minimizes height required at installation Coils are AHRI certified for system application with a variety of Rheem outdoor units
RUUD® Endeavor™ RCFY Series RCFY4821SEAAMC Line Cased Furnace Coil, 48000 Btu/hr BTU, NPT, Aluminum
BrandRheem®
MFG #RCFY4821SEAAMC
Keller #1433398
My Part ##
Last Ordered#
$2,792.13 / ea
